CLAS FLEMING cruiser-minelayer (1914)

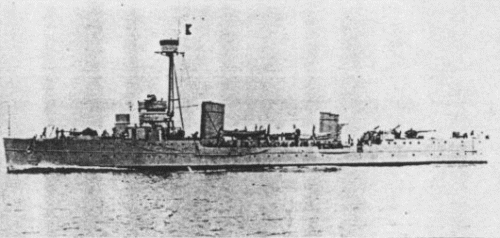

Clas Fleming 1910s

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Clas Fleming     Finnboda, Stockholm Bergsund 1911 14.12.1912 5.1914 stricken 1.1959


Technical data


Data variantas completed 1940 modernization
Displacement standard, t

1550

1640

Displacement full, t

1800

1850

Length, m

80.2

86.0

Breadth, m

10.4

10.4

Draught, m

4.30

4.30

No of shafts

2

2

Machinery

2 Parsons steam turbines, 8 Yarrow boilers

2 sets de Laval geared steam+gas turbines, 2 Yarrow boilers, 4 diesel gas generators

Power, h. p.

6500

7200

Max speed, kts

20

20.3

Fuel, t

coal 265

diesel oil

Endurance, nm(kts)
Armour, mm

deck: 25, CT: 75

deck: 25, CT: 75

Armament

4 x 1 - 120/48 K/50 M11, 4 x 1 - 8.80, 100 mines

4 x 1 - 120/48 K/50 M11, 3 x 1 - 40/56 K/60 M32, 3 x 1 - 25/55 K/58 M32, 200 mines, 2 DCR

Complement

160

160



Standard scale images


<i>Clas Fleming</i> 1922
Clas Fleming 1922
<i>Clas Fleming</i> 1941
Clas Fleming 1941
<i>Clas Fleming</i> 1941
Clas Fleming 1941


Graphics


<i>Clas Fleming</i> 1910s
Clas Fleming 1910s
<i>Clas Fleming</i> 1940
Clas Fleming 1940


Project history

The original ship which was officially registered on a cruiser-minelayer. Despite the small sizes she possessed strongly pronounced cruiser kinds: an armour deck, turbine propulsive plant and a high speed. The basic lack of the design were excessive cramping boiler rooms under an armour deck, complicating machine crew work. She was cardinally rebuilt in 1939-1940.

Protection

 25mm protective deck closed machinery spaces.

Modernizations

(1939-1940): hull was lengthened on 5m, Parsons steam turbines are changed by experimental machnery of Götaverken (in essence were first-ever gas turbines), consisting of two de Laval geared turbine sets, two Yarrow boilers and four diesels used as gas generators. Funnel No2 was dummy and installed later. Data was as given in the table.

Naval service

No significant events.
