TAPPER patrol boats (1993-1999)





Tapper 2006

Ships


Names Builders Commissioned Losses Transfers Discarding

81 Tapper

82 Djärv

83 Dristig

84 Händig

85 Trygg

86 Modig

87 Hurtig

88 Rapp

89 Stolt

90 Årlig

91 Munter

92 Orådd

Djupviks, Tjörn: 81-92

1993: 81, 82

1994: 83, 84

1995: 85-87

1996: 88

1997: 89, 90

1998: 91

1999: 92

None

None

2011: 81

in service (2019): 82-92



Technical data


Displacement standard, t54
Displacement full, t60
Length, m

19.7 pp 21.9 oa

Breadth, m

5.40

Draught, m

1.05

No of shafts

2

Machinery

2 MWM TBD243 BV16 diesels

Power, h. p.

2080

Max speed, kts

26

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 12.7/90, 4 x 9 ELMA ASWRL, 8 DC, mines, Phantom HD-2 USV

Electronic equipment2x Decca radars, Simrad sonar
Complement

8



Graphics

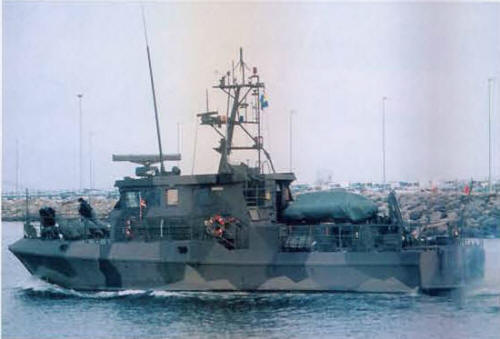

<i>Tapper </i>2006
Tapper 2006


Project history

Coastal artillery. Replacement for type 72 class. Aluminium alloy construction.

Modernizations

none.

Naval service

no significant events.
