N:R601 landing craft (1978-1987)

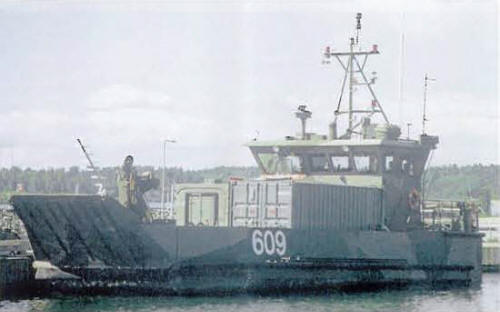

609 2004
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
601 602 603 604 Almo 605 606 Frigg 607 608 Nattarö 609 610 Ambjorn 611 612 651 652 653 Donsö 654 655 656 657 Bollö |
Djupviks, Tjörn, Oskarhamns, Farösund: 601-612, 651-657 |
1978: 601, 602 1984: 603-605 1985: 606 1986: 607, 608, 610, 611, 651-654 1987: 609, 612, 655-657 |
None |
None |
2001: 601, 602 2006-2007: 607, 611, 612, 651, 652, 654, 656, 657 2015: 603 2016: 604-606, 609, 610, 653, 655 in service (2019): 608 |
Technical data
| Displacement standard, t | 20 |
|---|---|
| Displacement full, t | 53 |
| Length, m | 20.0 pp 21.0 oa |
| Breadth, m | 7.20 |
| Draught, m | 0.70 |
| No of shafts | 2 |
| Machinery | 2 Saab-Scania DSI11/40-M20 diesels |
| Power, h. p. | 340 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Military load | 25 t cargo or 30 t liquid |
| Electronic equipment | Decca RM914C radar |
| Complement |
Graphics
609 2004
Project history
Coastal artillery. Classified as support boats.
Modernizations
none.
Naval service
no significant events.
