Malmö 2007 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Stockholm	K11, 2017- P11	410	Karlskronavarvet, Karlskrona	1.8.1982	24.8.1984	22.2.1985	in service (2019)

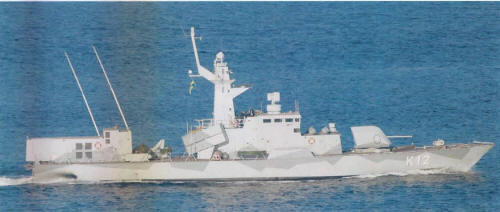

Malmö	K12, 2017- P12	411	Karlskronavarvet, Karlskrona	14.3.1983	22.3.1985	10.5.1985	in service (2019)

Technical data

Displacement standard, t	300
Displacement full, t	372
Length, m	46.6 pp 50.0 oa
Breadth, m	6.8 wl 7.50 oa
Draught, m	2.00 hull 3.30 max
No of shafts	3
Machinery	CODAG: 1 Allison 570KF gas turbine + 2 MTU 16V396 TB93 diesels
Power, h. p.	7170 + 4190 = 11360
Max speed, kts	32
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	4 x 2 RBS-15 SSM (8 RBS-15), 1 x 1 - 57/70 SAK57 Mk 2, 1 x 1 - 40/70 Bofors 315, 2 - 533 TT, 4 x 9 ELMA ASWRL, mines
Electronic equipment	PN-612 Scanter, Sea Giraffe 50HC, 9LV200 Mk 2 radars, 9LV100 e/o system, SA950, TSM2643 Salmon sonars, EWS-905 ECM suite, 2x Philax decoy RL, MARIL 880 CCS
Complement	30

Standard scale images

Graphics

Project history

Development of Norrköping class. Armament can be variable to suit mission: mines can be carried instead of half of SSMs, all SSMs can be replaced by 4 400mm TT.

Modernizations

2002, Malmö; 2003, Stockholm: were re-engined with 1 Vericor TF50 gas turbine + 2 MTU 16V396 TB94 diesels (5440+5280=10720hp), complement become 33; - 2 x 2 RBS-15 SSM, 2 - 533 TT, 1 x 1 - 40/70, 9LV200 Mk 2 radar, SA950 sonar, EWS-905 ECM suite, 2x Philax decoy RL, MARIL 880 CCS; + 2 - 400 TT (Tp45), 9GR400 radar, Hydra sonar, CS-5460 ECM suite, MASS decoy RL, CETRIS 9LVMk 3E CCS

Naval service

No significant events.
