NORRKÖPING fast attack craft (missile) (1973-1976)





Halmstad 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Norrköping T131, 1984- R131 369 Karlskronavarvet, Karlskrona   16.11.1972 11.5.1973 stricken 9.2005
Nynäshamn T132, 1984- R132 370 Karlskronavarvet, Karlskrona   24.4.1973 28.9.1973 stricken 2004
Norrtälje T133, 1984- R133 371 Karlskronavarvet, Karlskrona   18.9.1973 1.8.1974 stricken 11.1998
Varberg T134, 1984- R134 372 Karlskronavarvet, Karlskrona   2.2.1974 13.6.1974 stricken 11.1998
Västerås T135, 1984- R135 373 Karlskronavarvet, Karlskrona   15.5.1974 25.10.1974 stricken 11.1998
Västervik T136, 1984- R136 374 Karlskronavarvet, Karlskrona   2.9.1974 15.1.1975 stricken 12.1997
Umeå T137, 1984- R137 375 Karlskronavarvet, Karlskrona   13.1.1975 15.5.1975 stricken 11.1998
Piteå T138, 1984- R138 376 Karlskronavarvet, Karlskrona   12.5.1975 13.9.1975 stricken 2004
Luleå T139, 1984- R139 377 Karlskronavarvet, Karlskrona   19.8.1975 28.11.1975 stricken 2003
Halmstad T140, 1984- R140 378 Karlskronavarvet, Karlskrona   28.11.1975 9.4.1976 stricken 2003
Strömstad T141, 1984- R141 379 Karlskronavarvet, Karlskrona   26.4.1976 13.9.1976 stricken 2003
Ystad T142, 1984- R142 380 Karlskronavarvet, Karlskrona   3.9.1976 10.12.1976 stricken 2005


Technical data


Displacement standard, t

190
Displacement full, t230
Length, m

42.0 wl 43.6 oa
Breadth, m

7.10
Draught, m

1.60 hull 2.40 propellers
No of shafts

3
Machinery

3 Rolls-Royce Proteus gas turbines
Power, h. p.

12900
Max speed, kts

40.5
Fuel, t

gas turbine oil
Endurance, nm(kts)
Armament

1 x 1 - 57/70 M50 Mk 1, 6 - 533 TT, 1 x 6 - 57 RFL, 4 x 9 ELMA ASWRL, mines
Electronic equipmentScanter 009, 9LV200 Mk 1 radars, ST-240 sonar, AR-700 ECM suite, 2x Philax decoy RL
Complement

27


Standard scale images


<i>Norrköping </i>1980
Norrköping 1980
<i>Ystad </i>2000
Ystad 2000


Graphics

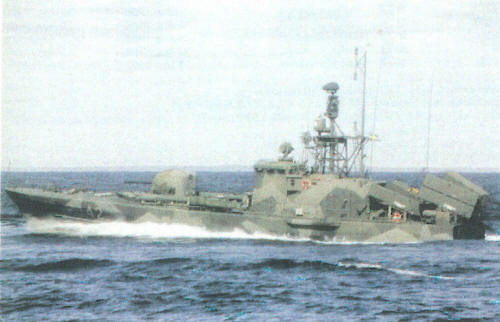

<i>Ystad </i>2003 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Ystad 2003 Many thanks to Wolfgang Stöhr for additional information on this page.

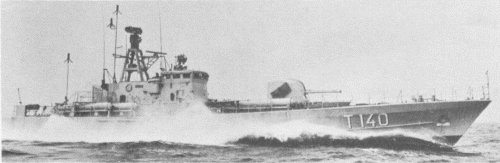

<i>Halmstad </i>1979
Halmstad 1979


Project history

Spica II design. 8 SSMs can be carried if TTs removed or 6 TTs without SSMs or mines instead of missiles and torpedoes.

Modernizations

1982-1984, all: - 4 - 533 TT; + 2 x 2 RBS-15 SSM (4 RBS-15), Sea Giraffe 50HC radar, MARIL 880 CCS, TTs can launch Tp613 wire-guided torpedoes

late 1990s, all: - 4 x 9 ELMA ASWRL, ST-240 sonar

Naval service

No significant events.
