ASKÖFJÄRD patrol boats (1931-1932)
Baggensfjärd 1946
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
V71 Asköfjärd V72 Baggensfjärd V73 Nämdöfjärd |
Ekensberg, Göteborg: V71-73 |
1931: V71 1932: V72, 73 |
none |
none |
1954: V71-73 |
Technical data
| Displacement standard, t | 25 |
|---|---|
| Displacement full, t | |
| Length, m | 19.3 |
| Breadth, m | 3.80 |
| Draught, m | 1.50 |
| No of shafts | 1 |
| Machinery | 1 diesel |
| Power, h. p. | 92 |
| Max speed, kts | 11.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 37/37 K/39 M98 |
| Complement | 7 |
Graphics

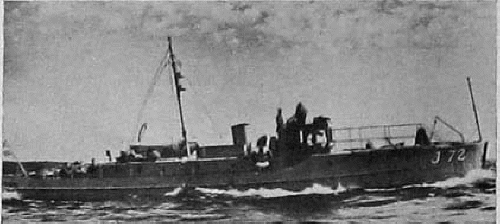

Baggensfjärd 1946
Project history
Belonged to Coastal Artillery.
Modernizations
none.
Naval service
no significant events.
