SAMUDURA patrol ship (1968/2004)

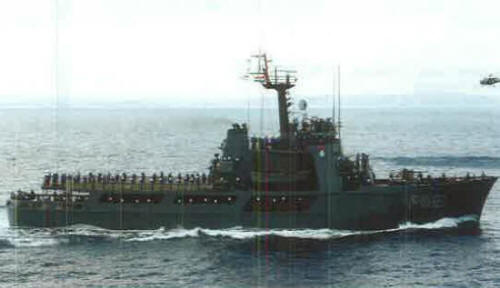

Samudura 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| සමුදුර [Samudura] (ex-Courageous) | P621 | 883 | American SB, Lorain, USA | 18.3.1967 | 10.4.1968 // 24.6.2004 | in service (2019) |
Technical data
| Displacement standard, t | 950 |
|---|---|
| Displacement full, t | 1100 |
| Length, m | 61.0 pp 64.2 oa |
| Breadth, m | 10.4 |
| Draught, m | 3.20 |
| No of shafts | 2 |
| Machinery | 2 Alco 251B diesels |
| Power, h. p. | 5000 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6100(14) |
| Armament | 1 x 1 - 25/75 Mk 38 Bushmaster, 2 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | SPS-64(v)1, SPS-73 radars |
| Complement | 73 |
Standard scale images
Samudura 2010
Graphics
Samudura 2010
Project history
Former USCG Reliance class cutter.
Modernizations
None.
Naval service
No significant events.
