P483 patrol boats (1993-1995)





2004

Ships


Names Builders Commissioned Losses Transfers Discarding

P483, late 1990s- P410, mid-2000s- P250

P484, late 1990s- P411

P485, late 1990s- P412, mid-2000s- P252, 2012- 44

P486, late 1990s- P413, mid-2000s- P253, 2012- 45

Simonneau Marine, Fontenay-le-Comte, France: P483, 484

Colombo DYd: P485, 486

1993: P483, 484

1995: P485, 486

P411 (Tamil Tigers 2001)

None

2012: P250

in service (2019): 44, 45



Technical data


Displacement standard, t
Displacement full, t28
Length, m

17.3

Breadth, m

4.90

Draught, m

1.40

No of shafts

2 waterjets

Machinery

2 MTU 12V183 TE93 diesels

Power, h. p.

2300

Max speed, kts

42

Fuel, t

diesel oil

Endurance, nm(kts)500(35)
Armament

1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, 2 x 1 - 7.6/90

Electronic equipment

Decca radar

Complement8

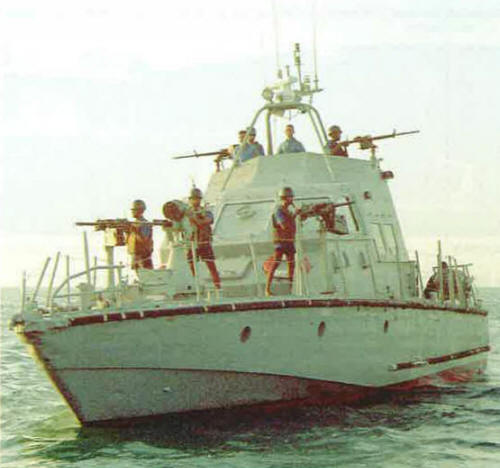

Graphics


2004
2004


Project history

Simonneau 'Sea Sentinel' design.

Modernizations

none.

Naval service

In 2012 two boats were transferred to Coast Guard.
