P450 patrol boats (1996-2005)





P412 2013

Ships


Names Builders Commissioned Losses Transfers Discarding

Mk I:

P450, 451

Mk II:

P490-497

Mk III:

P410-424

Mk IV:

P430-439

Colombo DYd: P410-424, 430-439, 450, 451, 490-497

1996: P450, 451

1997-1999: P490-497

2000-2004: P410-424

2005: P430-439

P413 (Tamil Tigers, date unknown), P416 (Tamil Tigers, date unknown), P418 (Tamil Tigers 11.5.2006), P431 (Tamil Tigers, date unknown), P434 (Tamil Tigers 2009), P438 (Tamil Tigers 22.3.2008), P493 (Tamil Tigers 21.3.2001), P495 (Tamil Tigers, date unknown), P496 (Tamil Tigers 21.3.2001)

None

in service (2019): P410-412, 414, 415, 417, 419-424, 430, 432, 433, 435-437, 439, 450, 451, 490-492, 494, 497



Technical data


Displacement standard, t56
Displacement full, t74
Length, m

24.8

Breadth, m

6.00

Draught, m

1.20

No of shafts

2

Machinery

Mk I, II: 2 MTU 12V396 TE94 diesels

Mk III, IV: 2 Deutz TBD620 16V diesels

Power, h. p.

4570

Max speed, kts

46

Fuel, t

diesel oil

Endurance, nm(kts)850(16)
Armament

1 x 1 - 23/87 Typhoon, 1 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/79, 8 x 1 - 7.6/90

Electronic equipment

Furuno FR8250D radar, MSIS e/o system

Complement15


Graphics

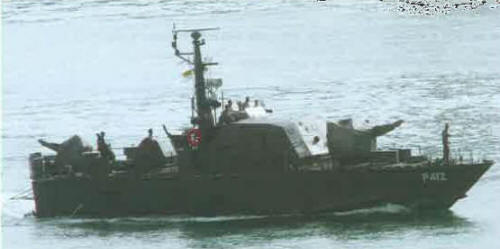

<i>P412 </i>2013
P412 2013


Project history

Aluminium construction. Built by Colombo DYd to the Israeli 'Shaldag' design.

Modernizations

none.

Naval service

No significant events.
