NANDIMITHRA fast attack craft (missile) (1979-1980/2000)

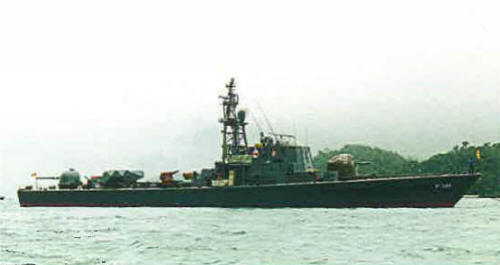

Nandimithra 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| නන්දිමිත්ර [Nandimitra] (ex-מולדת [Moledet]) | P701 | Israeli SY, Haifa, Israel | 19.7.1979 | 8/1980 // 8.2000 | in service (2019) | ||
| සුරනිමල [Suranimala] (ex-קוממיות [Komemiut]) | P702 | Israeli SY, Haifa, Israel | 22.3.1979 | 5/1979 // 8.2000 | in service (2019) |
Technical data
| Displacement standard, t | 415 |
|---|---|
| Displacement full, t | 450 |
| Length, m | 58.1 |
| Breadth, m | 7.60 |
| Draught, m | 2.40 |
| No of shafts | 4 |
| Machinery | 4 MTU 16V956 TB91 diesels |
| Power, h. p. | 14000 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4000(17.5) |
| Armament | 4 x 1 Gabriel Mk 1 SSM (4 Gabriel Mk 1), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 Typhoon, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/79 |
| Electronic equipment | TH-D1040 Neptune, RTN-10X Orion radars, NS-9003, NS-9005 ECM suites, 1x 45-tube, 4x 24-tube, 4x 1-tube decoy RL |
| Complement | 45 |
Standard scale images
Nandimithra 2000
Graphics
Nandimithra 2003
Project history
Former Israeli Reshef-class (Sa'ar IV) fast attack craft (missile), transferred with changed armament. Recommissioned 9.12.2000.
Modernizations
None.
Naval service
No significant events.
