BDK6 small landing ships (1966)





BDK6 1976

Ships


Name

No

 Yard No

Builder

Laid down

Launched

Comm

Fate

BDK6

K6, 1971- LCT6, 1986- A06



Bazán, La Carraca

 1965 1966

12/1966

logistic support craft 1986, stricken 2004

BDK7

K7, 1971- LCT7, 1986- A07



Bazán, La Carraca

 1965 1966

12/1966

logistic support craft 1986, stricken 1998

BDK8

K8, 1971- LCT8, 1986- A08



Bazán, La Carraca

 1965 1966

12/1966

logistic support craft 1986, stricken 2004


Technical data


Displacement standard, t579
Displacement full, t665
Length, m

59.0
Breadth, m11.9
Draught, m

1.30
No of shafts

2
Machinery

2 MGO diesels
Power, h. p.

1040
Max speed, kts

9.5
Fuel, t

diesel oil
Endurance, nm(kts)1500(9)
Armament

1 x 1 - 81/12 mortar, 2 x 1 - 12.7/90
Military load

5 LVTs or 11 trucks
Electronic equipmentradar
Complement17


Standard scale images

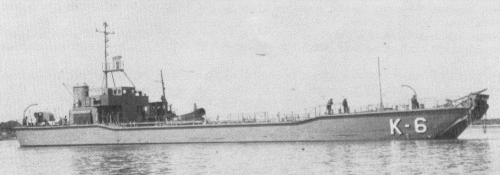

<i>BDK6</i> 1970
BDK6 1970


Graphics


BDK6 1976
BDK6 1976


Project history

Spanish-built landing craft of French EDIC type.

Modernizations

None.

Naval service

No significant events.
