Jan Van Riebeeck 1971

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Jan Van Riebeeck (ex-Wessex)	D278		Fairfield, Govan, UK	10/1942	2.9.1943	5/1944 // 3.1950	discarded 1978
Simon Van der Stel (ex-Whelp)	D237		Hawthorn Leslie, Hebburn, UK	5/1942	3.6.1943	4/1944 // 2.1953	discarded 1976

Technical data

Data variant	as commissioned	type 16 conversion
Displacement standard, t	1810	2105
Displacement full, t	2545	2750
Length, m	103.5 pp 110.6 oa	103.5 pp 109.2 oa
Breadth, m	10.9	10.9
Draught, m	4.32 - 4.37 deep load	5.20 deep load
No of shafts	2	2
Machinery	2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers	2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers
Power, h. p.	40000	40000
Max speed, kts	36.75	36.75
Fuel, t	oil 588
Endurance, nm(kts)	4675(20)	1700 (20)
Armament	4 x 1 - 120/45 CP Mk 22, 1 x 1 - 40/60 Mk 3, 1 x 4 - 40/39 Mk 7, 4 x 2 - 20/70 Mk 5, 2 x 4 - 533 TT, 4 DCT, 2 DCR (130 DC)	2 x 2 - 102/45 Mk 19, 4 x 1 - 47/40 Mk 1 (saluting), 4 x 1 - 40/60 Mk 9, 1 x 4 - 533 TT, 2 DCT, 2 DCR, 2 helicopters (Wasp)
Electronic equipment	type 276, type 285, type 291 radars, type 144 sonar	type 293, type 974, NA9C radars, type 170, type 174P sonars
Complement	225	192

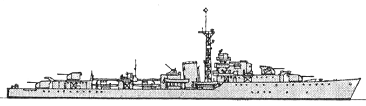

Standard scale images

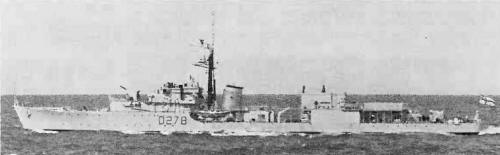

Graphics

Project history

Former British 'W' class destroters.

Modernizations

1964, Simon Van der Stel; 1966, Jan van Riebeeck: were converted to Type 16 frigates with data as given in the table.

Naval service

These ships were rated as destroyers also after conversion.
