SARAH BAARTMAN oceanic patrol ship (2005)

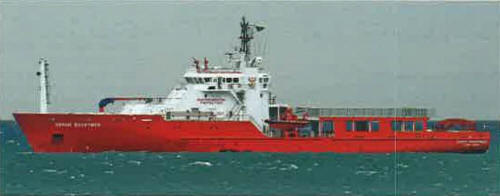

Sarah Baartman 2009

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Sarah Baartman     Damen Galati, Romania // Damen Schelde, Vliessingen, Netherlands 10/2003 6/2004 10.1.2005 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

~1800

Length, m

82.9

Breadth, m

13.0

Draught, m

4.00

No of shafts

2

Machinery

2 Wärtsilä 12V26A diesels

Power, h. p.

11100

Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)

12000(15)

Armament

helicopter deck

Electronic equipment

2x nav. radars

Complement

29



Standard scale images


<i>Sarah Baartman </i>2010
Sarah Baartman 2010


Graphics


<i>Sarah Baartman </i>2009
Sarah Baartman 2009


Project history

Offshore patrol vessel for fishery and environmental protection, assistance in operation, oil-spill cleanup, search and rescue, limited towing and firefighting. Coast Guard.

Modernizations

None.

Naval service

No significant events.
