LATA patrol boats (1988-1991)
Auki 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Lata | 03 | ASI, Jervis Bay, Australia | 12.9.1987 | 19.5.1988 | 3.9.1988 | stricken 9.2019 | |
| Auki | 04 | ASI, Jervis Bay, Australia | 23.1.1991 | 1991 | 2.11.1991 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 165 |
| Length, m | 28.6 pp 31.5 oa |
| Breadth, m | 8.10 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516 diesels |
| Power, h. p. | 2820 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil 28 |
| Endurance, nm(kts) | 2500(12) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | Furuno 1011 radar |
| Complement | 14 |
Graphics

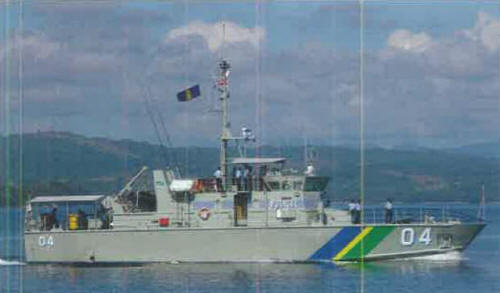

Auki 2012
Project history
ASI315, or 'Pacific Patrol Boat' design, built as grant-aid by Australia. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
© Ivan Gogin, 2020
