TRIGLAV patrol craft (2010)
Triglav 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Triglav | 11 | 043 | Almaz, St. Petersburg, Russia | 9/2008 | 21.7.2010 | 21.11.2010 | in service (2020) |
Technical data
| Displacement standard, t | 330 |
|---|---|
| Displacement full, t | 365 |
| Length, m | 43.0 pp 49.5 oa |
| Breadth, m | 9.20 |
| Draught, m | 2.40 |
| No of shafts | 3 |
| Machinery | 3 MTU 16V4000 M73L diesels |
| Power, h. p. | 16200 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2200(13) |
| Armament | 2 x 3 Shturm-V ATGM (6 9M120-1), 1 x 6 Gibka SAM (12 9M313-1 Igla-1M), 1 x 6 - 30/54 AK-630M, 2 x 1 - 14.5/93 |
| Electronic equipment | Furuno FR-2150W radar, SP-520M-2 e/o system, Sliabing ECM suite, 2x PK-10 decoy RL |
| Complement | 24 |
Graphics

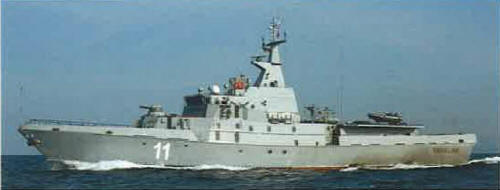

Triglav 2011
Project history
Russian export project 10412 with modified armament and without ASW equipment.
Modernizations
None.
Naval service
No significant events.
