ENDURANCE dock landing ships (2000-2001)
Persistence 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Endurance | 207 | STM, Jurong | 26.3.1997 | 14.3.1998 | 18.3.2000 | in service (2019) | |
| Resolution | 208 | STM, Jurong | 22.10.1997 | 1.8.1998 | 18.3.2000 | in service (2019) | |
| Persistence | 209 | STM, Jurong | 3.4.1998 | 13.3.1999 | 7.4.2001 | in service (2019) | |
| Endeavour | 210 | STM, Jurong | 15.10.1998 | 13.2.2000 | 7.4.2001 | in service (2019) |
Technical data
| Displacement standard, t | 6000 |
|---|---|
| Displacement full, t | 8500 |
| Length, m | 141.0 |
| Breadth, m | 21.0 |
| Draught, m | 5.00 mean |
| No of shafts | 2 |
| Machinery | 2 Ruston 16RK270 diesels |
| Power, h. p. | 12000 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 5000(15) |
| Armament | 2 x 2 Simbad SAM (24 Mistral), 1 x 1 - 76/62 OTO-Melara Compact SR, 5 x 1 - 12.7/90, 2 helicopters (Super Puma) |
| Military load | 4 LCM, 4 LCVP, 18 tanks, 20 vehicles, 350 troops or 1080 t cargo |
| Electronic equipment | type 1007, EL/M-2238 radars, Najir 2000 e/o system, RAN-1101 ECM suite, 2x Shield III decoy RL |
| Complement | 65 |
Standard scale images

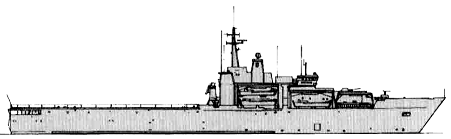

Endurance 2000
Graphics
Persistence 2008
Project history
Ordered in 1996 as replacements for US-built LSTs, project STEM 1400 designed in cooperation with Ingalls. Have 60t, 16.8x4.05m bow ramp, docking well for up to 4 LCMs. Stern door 15.6m wide, 8m high) swings down to form 7m 66t capacity vehicle ramp. Two 25t cranes and two 22t elevators are fitted. Originally were to have two 8-cell Barak SAM VLSs and twin 40mm OTO-Melara Compact and 30mm Goalkeeper CIWS, but all these systems were omitted.
Modernizations
None.
Naval service
No significant events.
