HAMMERHEAD SHARK patrol craft (2009-2010)
Thresher Shark 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Hammerhead Shark | PH50 | Damen, Singapore | 5.2009 | in service (2019) | |||
| Mako Shark | PH51 | Damen, Singapore | 3.2.2009 | in service (2019) | |||
| White Shark | PH52 | Damen, Singapore | 2008 | in service (2019) | |||
| Blue Shark | PH53 | Damen, Singapore | 2008 | in service (2019) | |||
| Tiger Shark | PH54 | Damen, Singapore | 7.2009 | in service (2019) | |||
| Basking Shark | PH55 | Damen, Singapore | 8.2009 | in service (2019) | |||
| Sandbar Shark | PH56 | Damen, Singapore | 9.2009 | in service (2019) | |||
| Thresher Shark | PH57 | Damen, Singapore | 11.2009 | in service (2019) | |||
| Whitetip Shark | PH58 | Damen, Singapore | 12.2009 | in service (2019) | |||
| Blacktip Shark | PH59 | Damen, Singapore | 2.2010 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 140 |
| Length, m | 35.0 |
| Breadth, m | 7.40 |
| Draught, m | 1.75 |
| No of shafts | 3 waterjets |
| Machinery | 3 Caterpillar 3516C diesels |
| Power, h. p. | |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 900(15) |
| Armament | 1 x 1 - 25/75 Mk 38, 2 x 1 - 12.7/90 |
| Electronic equipment | 2x radars |
| Complement | 14 + 20 passengers |
Graphics

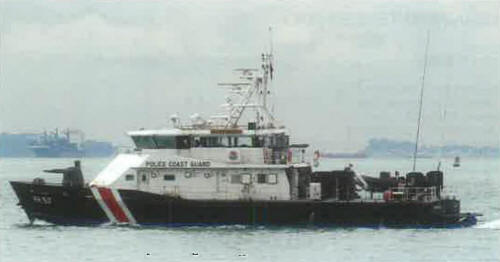

Thresher Shark 2013
Project history
Maritime Police (Coast Guard). Damen Stan Patrol 3507 design boats, ordered in 2006 to replace the Swift class.
Modernizations
None.
Naval service
No significant events.
