SIERRA LEONE
COASTAL FORCES
001 patrol boats (1973-1987)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 001 | Wuzhou SY, China | 6.1973 | deleted 1979 | ||||
| 002 | Wuzhou SY, China | 6.1973 | discarded early 1980s | ||||
| 003 | Wuzhou SY, China | 1976 | discarded early 1980s | ||||
| Moa | Wuzhou SY, China | 3.1987 | inoperable 1998 | ||||
| Naimbana | Wuzhou SY, China | 3.1987 | inoperable 1998 |
Technical data
| Displacement standard, t | 123 |
|---|---|
| Displacement full, t | 135 |
| Length, m | 38.8 |
| Breadth, m | 5.41 |
| Draught, m | 1.55 |
| No of shafts | 4 |
| Machinery | 2 M-50F-4 diesels, 2 12D6 diesels |
| Power, h. p. | 4200 (2x1200+2x910) |
| Max speed, kts | 28.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(16.5) |
| Armament | 2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61M |
| Electronic equipment | type 351 or type 756 radar |
| Complement | 36 |
Standard scale images

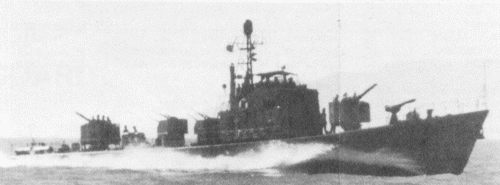

Moa 1990
Graphics
Project history
Chinese-built patrol boats of type 062.
Modernizations
None.
Naval service
No significant events.
Ivan Gogin, 2020
