SENEGAL
AMPHIBIOUS SHIPS
CTM2 landing craft (1965/1999)
2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| CTM2 (ex-CTM5), later- unnamed | 2 | CMN, Cherbourg, France | 4.1.1965 | 24.6.1965 | 7.1965 // 1.10.1999 | in service (2020) |
Technical data
| Displacement standard, t | 56 |
|---|---|
| Displacement full, t | 150 |
| Length, m | 23.8 |
| Breadth, m | 6.35 |
| Draught, m | 1.17 |
| No of shafts | 2 |
| Machinery | 2 Poyaud 520V8 diesels |
| Power, h. p. | 480 |
| Max speed, kts | 9.5 |
| Fuel, t | diesel oil 3 |
| Endurance, nm(kts) | 380(8) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 90t of cargo |
| Electronic equipment | Koden radar |
| Complement | 6 |

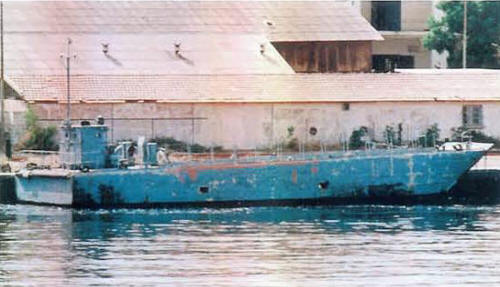

Graphics
2001
Project history
LCM of French CTM type, transferred after service under French flag.
Modernizations
None.
Naval service
No significant events.
