SÉNÉGAL II patrol boats (1979)





Casamance 2 1979

Ships


Names Builders Completed Losses Transfers Discarding

Sénégal 2

Casamance 2

Siné-Saloum 2

Turbec, St. Catharine's, Canada: Sénégal 2, Casamance 2, Siné-Saloum 2

1979: Sénégal 2, Casamance 2, Siné-Saloum 2

none

none

2003: Casamance 2, Siné-Saloum 2

2010: Sénégal 2


Technical data


Displacement standard, t

52
Displacement full, t62
Length, m26.5
Breadth, m5.81
Draught, m1.60
No of shafts2
Machinery2 diesels
Power, h. p.2700
Max speed, kts

32
Fuel, t

diesel oil
Endurance, nm(kts)
Armament2 x 1 - 20/90 F2
Electronic equipmentLN-66 radar
Complement


Graphics

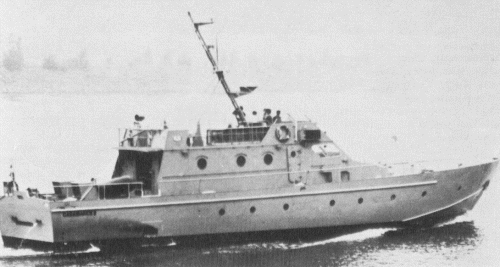

<i>Casamance 2 </i>1979
Casamance 2 1979


Project history

Interceptor class. Used for fishery protection patrol.

Modernizations

late 1990s, all: - 1 x 1 - 20/90 , LN-66 radar; + 2 x 1 - 7.6/90, JRC3610 radar

Naval service

No significant events.
