NJAMBUUR fast attack craft (gun) (1983)

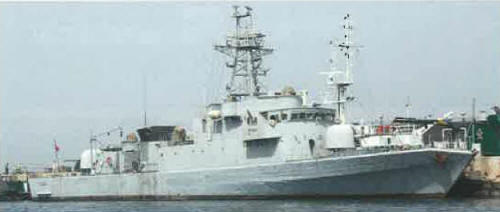

Njambuur 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Njambuur | P773, later- no number | SFCN, Villeneuve-la-Garenne, France | 5.1980 | 23.12.1980 | 2.1983 | in service (2020) |
Technical data
| Displacement standard, t | 380 |
|---|---|
| Displacement full, t | 451 |
| Length, m | 54.0 pp 58.7 oa |
| Breadth, m | 8.22 |
| Draught, m | 2.18 |
| No of shafts | 4 |
| Machinery | 4 AGO 195V16 RVR diesels |
| Power, h. p. | 12800 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(16) |
| Armament | 2 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 20/90 F2 |
| Electronic equipment | Decca 1226 radar, 2x Naja e/o systems |
| Complement | 39 + 7 passengers |
Graphics
Njambuur 2011
Project history
French PR72 MS class. Completed without armament 15.9.1981. Planes of installing of MM40 Exocet SSMs were abandoned.
Modernizations
2003: 2 shafts were removed, diesels were replaced by 2 SACM-Wärtsilä UD33V16 diesels (5900hp, 20kts); - Decca 1226 radar; + 2 x 1 - 12.7/90, 2x Furuno 1421 radars
Naval service
No significant events.
