2! SR.N6 type patrol hovercraft (1970-1983)
1971
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
050-065 |
British Hovercraft Co., East Cowes, UK: 050-065 | 1970: 050-057 1981: 058, 059 1982: 060-063 1983: 064, 065 |
none |
none |
1995: 12 units in service (2019): 4 units |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 11 |
| Length, m | 14.8 |
| Breadth, m | 7.00 |
| Draught, m | 1.20 / 0 |
| No of shafts | 1 air propeller |
| Machinery | 1 Rolls-Royce Gnome 1050 gas turbine |
| Power, h. p. | 1050 |
| Max speed, kts | 60 |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | 170(54) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 3 |
Standard scale images
050 1970

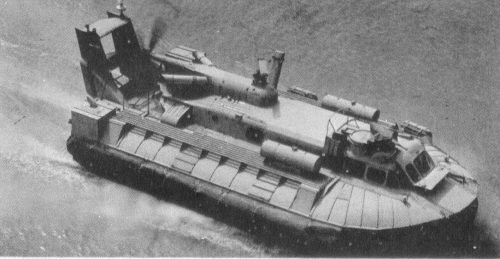

Graphics
1971
Project history
Small patrol hovercraft. British Hovercraft SR.N6 type.
Modernizations
None.
Naval service
No significant events.
