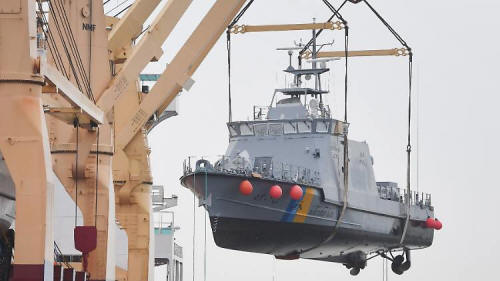

JEDDAH patrol craft (2017)







Ships


Name No Yard No Builder Laid down Launched Comm Fate
جدة [Jeddah] TR5243   Lürssen, Wolgast, Germany     7/2017 in service (2019)
فرسان [Farasan] L5311   Lürssen, Wolgast, Germany     7/2017 in service (2019)
الأفلاج [Al Aflaj] L5312   Lürssen, Wolgast, Germany     7/2017 in service (2019)
أدير [Addayar] L5281   Lürssen, Wolgast, Germany     7/2017 in service (2019)
رابغ [Rabigh] L5282   Lürssen, Wolgast, Germany     7/2017 in service (2019)
عفيف [Afif] L5291   Lürssen, Wolgast, Germany     9/2017 in service (2019)
بقيق [Budaqayq] L5292   Lürssen, Wolgast, Germany     9/2017 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

210

Length, m

40.0

Breadth, m

7.50

Draught, m

2.30

No of shafts

2

Machinery

2 diesels

Power, h. p.

7830

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90

Electronic equipment2x radars, e/o system
Complement

20



Graphics





Project history

Lürssen OPB41/CSB-40 design. Have a RIB on the stern.

Modernizations

None.

Naval service

No significant events.
