AL JUBATEL patrol craft (1987)
Al Jubatel 1987
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
الجباتل [Al Jubatel] سلوى [Salwa] |
Abeking & Rasmussen, Lemwerder, West Germany: Al Jubatel, Salwa | 1987: Al Jubatel, Salwa |
none |
none |
in service (2019): Al Jubatel, Salwa |
Technical data
| Displacement standard, t | 80 |
|---|---|
| Displacement full, t | 95 |
| Length, m | 23.0 pp 26.6 oa |
| Breadth, m | 6.50 |
| Draught, m | 1.80 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB94 |
| Power, h. p. | 6340 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1100(25) |
| Armament | 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca AC1290 radar |
| Complement | 12 |
Graphics

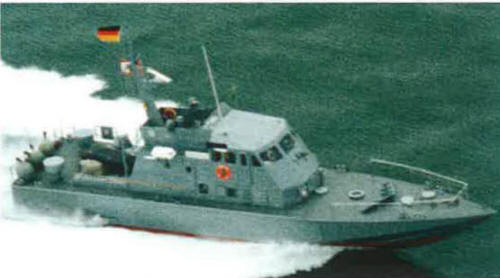

Al Jubatel 1987
Project history
Abeking & Rasmussen CGV-26 Explorer class. Steel construction. Coast Guard.
Modernizations
None.
Naval service
No significant events.
