AL JOUF large patrol craft (1989)

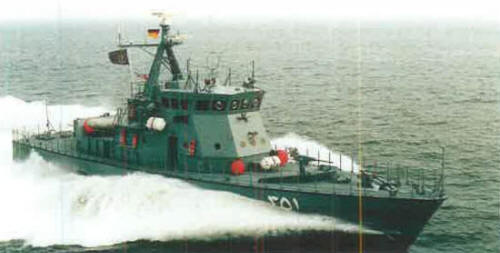

Al Jouf 1989
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| الجوف [Al Jouf] | 351, 2014- | Blohm & Voss, Hamburg, Germany | 30.3.1988 | 10.3.1989 | 15.6.1989 | in service (2019) | |
| طرائف [Turaif] | 352, 2014- 994 | Blohm & Voss, Hamburg, Germany | 27.4.1988 | 4/1989 | 15.6.1989 | in service (2019) | |
| هائل [Hail] | 353 | Blohm & Voss, Hamburg, Germany | 1.8.1988 | 1989 | 20.8.1989 | in service (2019) | |
| نجران [Najran] | 354 | Blohm & Voss, Hamburg, Germany | 5.8.1988 | 1989 | 20.8.1989 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 210 |
| Length, m | 36.2 pp 38.6 oa |
| Breadth, m | 8.00 |
| Draught, m | 1.90 |
| No of shafts | 3 |
| Machinery | 3 MTU 16V538 TB93 diesels |
| Power, h. p. | 11260 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1900(15) |
| Armament | 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca RM1290A, Decca S1690 radars |
| Complement | 20 |
Standard scale images
Al Jouf 1990
Graphics
Al Jouf 1989
Project history
Ordered in 1986. Steel hull, aluminium superstructure. Have firefighting monitor.
Modernizations
None.
Naval service
No significant events.
