AL DHAHRAN patrol boats (2002-2003)





Arar 2002

Ships


Names Builders Completed Losses Transfers Discarding

317 أسير [Assir] 318 الظهران [Al Dhahran] 319 الخارج [Al Kharj] 320 عرار [Arar]

321 322 الوديه [Al Wadeeah]

Damen, Gorinchen, Netherlands: 317-322

2002-2003: 317-322

none

none

in service (2019): 317-322



Technical data


Displacement standard, t
Displacement full, t

55

Length, m

26.5

Breadth, m

6.20

Draught, m

1.80

No of shafts

2

Machinery

2 MTU 12V396 TE94 diesels

Power, h. p.

4430

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 12.7/90

Electronic equipmentradar
Complement


Graphics

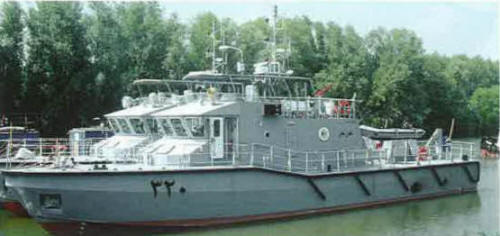

<i>Arar </i>2002
Arar 2002


Project history

Damen StanPatrol 2606 class. Aluminium construction. Coast Guard.

Modernizations

None.

Naval service

Boats were renumbered in 2014 (one boat received hull no B125)
