NAVYPEDIA

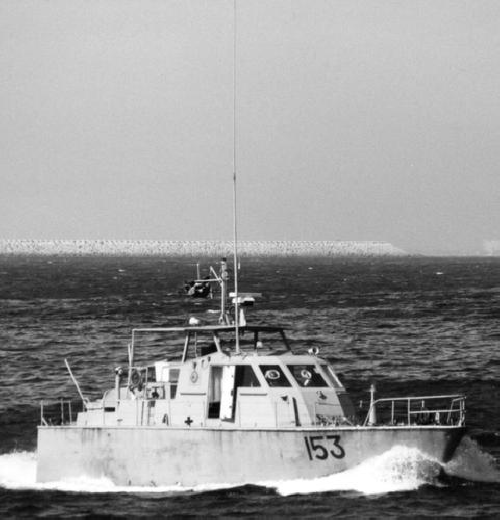

153 1998

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
139-163	Bayerische Schiffbau, Erlenbach, West Germany: 139-158 Arminias Werft, Bodenwerder, West Germany: 159-163	1979: 139-153 1981: 154-163	none	none	late 1990s: 15 units early 2000s: 10 units

Technical data

Displacement standard, t
Displacement full, t	33
Length, m	15.6 pp 17.1 oa
Breadth, m	4.98
Draught, m	1.40
No of shafts	2
Machinery	2 General Motors 12V71TI diesels
Power, h. p.	1300
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)	200(20)
Armament	2 x 1 - 7.6/90
Electronic equipment	Decca RM914 radar
Complement	7

Graphics

Project history

Type Scorpion, aluminium construction. Coast Guard.

Modernizations

None.

Naval service

No significant events.
