FIGHTING SHIPS OF THE WORLD
SAUDI ARABIA
COASTAL FORCES
DAMMAM fast attack craft (torpedo) (1969)





1974

Ships


Name No Yard No Builder Laid down Launched Comm Fate
دمم [Dammam]     Lürssen, Vegesack, West Germany     1969 deleted 1993
خبر [Khabar]     Lürssen, Vegesack, West Germany     1969 deleted 1993
مكه [Maccah]     Lürssen, Vegesack, West Germany     1969 deleted 1993


Technical data


Displacement standard, t

160
Displacement full, t

190
Length, m

39.8 wl 42.6 oa
Breadth, m

7.10
Draught, m

2.40
No of shafts

4
Machinery

4 Maybach diesels
Power, h. p.

12000
Max speed, kts

42
Fuel, t

diesel oil
Endurance, nm(kts)1000(30)
Armament

2 x 1 - 40/70 Bofors 350, 4 - 533 TT
Electronic equipment

Decca 1226 radar
Complement

33


Standard scale images

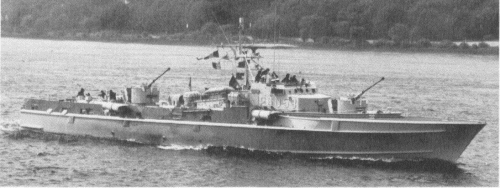

<i>Dammam </i>1970
Dammam 1970


Graphics


1974
1974


Project history

German Jaguar class (Type 141), ordered in 1968.

Modernizations

None.

Naval service

No significant events.
