AS SIDDIQ fast attack craft (missile) (1980-1982)

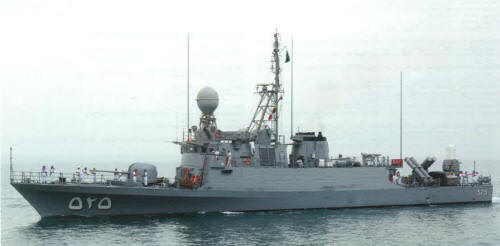

Oqbah 2010

Ships


Name No Yard No Builder Laid down Launched Comm Fate
أس صديق [As Siddiq] 511   Peterson, Sturgeon Bay, USA 30.9.1978 22.9.1979 15.12.1980 in service (2019)
الفاروق [Al Farouq] 513   Peterson, Sturgeon Bay, USA 12.3.1979 17.5.1980 22.6.1981 in service (2019)
عبدال عزيز [Abdul Aziz] 515   Peterson, Sturgeon Bay, USA 19.10.1979 23.8.1980 3.9.1981 in service (2019)
فيصل [Faisal] 517   Peterson, Sturgeon Bay, USA 4.3.1980 15.11.1980 23.11.1981 in service (2019)
خالد [Khalid] 519   Peterson, Sturgeon Bay, USA 27.6.1980 28.3.1981 11.1.1982 in service (2019)
عمر [Amr] 521   Peterson, Sturgeon Bay, USA 21.10.1980 13.6.1981 21.6.1982 in service (2019)
طارق [Tariq] 523   Peterson, Sturgeon Bay, USA 10.2.1981 23.9.1981 16.8.1982 in service (2019)
عقباه [Oqbah] 525   Peterson, Sturgeon Bay, USA 8.5.1981 12.12.1981 18.10.1982 in service (2019)
أبو عبيده [Abu Obaidah] 527   Peterson, Sturgeon Bay, USA 4.9.1981 3.4.1982 6.12.1982 in service (2019)


Technical data


Displacement standard, t

425

Displacement full, t

495

Length, m

58.0

Breadth, m

8.08

Draught, m

1.95 hull

No of shafts

2

Machinery

CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V652 TB91 diesels

Power, h. p.

23000 / 3000

Max speed, kts

38

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)2900(14)
Armament

2 x 2 Harpoon SSM (4 RGM-84C), 1 x 1 - 76/62 Mk 75, 1 x 6 - 20/76 Phalanx Mk 15, 2 x 1 - 20/70 Mk 10, 1 x 1 - 81/12 M29, 2 x 1 - 40/19 Mk 19 grenade launchers

Electronic equipment

SPS-55, Mk 92, Mk 90 radars, SLQ-32(v)1 ECM suite, 2x Mk 36 SRBOC decoy RL

Complement

38



Standard scale images


<i>As Siddiq </i>1990
As Siddiq 1990


Graphics


<i>Oqbah </i>2010
Oqbah 2010


Project history

US PGG type, ordered in 1972. They have the same machinery as larger Badr class corvettes and the same armament (without ASW abilities). Heavily overweight.

Modernizations

None.

Naval service

No significant events.
