ADDIRIYAH coastal minesweepers (1978)

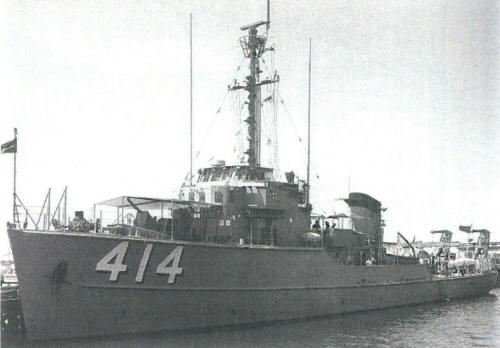

Al Quysumah 1996

Ships


Name No Yard No Builder Laid down Launched Comm Fate
ضريه [Addiriyah] 412   Peterson, Sturgeon Bay, USA 12.5.1976 20.12.1976 6.7.1978 in service (2019)
القيصومه [Al Quysumah] 414   Peterson, Sturgeon Bay, USA 24.8.1976 26.5.1977 15.8.1978 in service (2019)
الواديلة [Al Wadeeah] 416   Peterson, Sturgeon Bay, USA 28.12.1976 6.9.1977 7.9.1978 in service (2019)
صفوة [Safwa] 518   Peterson, Sturgeon Bay, USA 5.3.1977 7.12.1977 20.10.1978 in service (2019)


Technical data


Displacement standard, t

320

Displacement full, t

405

Length, m

46.6

Breadth, m

8.29

Draught, m

4.06

No of shafts

2

Machinery

2 Waukesha E1616DSIN diesels

Power, h. p.

1200

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)2500(10)
Armament

1 x 2 - 20/70 Mk 67, mechanical, magnetic, acoustic minesweeping gear

Electronic equipment

SPS-55 radar, SQQ-14 sonar

Complement

39



Standard scale images


<i>Addiriyah </i>1990
Addiriyah 1990


Graphics


<i>Al Quysumah </i>1996
Al Quysumah 1996


Project history

US MSC322 type (Bluebird class). Built in the USA under International Logistics Programme.

Modernizations

None.

Naval service

No significant events.
