52 patrol boats (1992-1993)
Halter type boat 1990
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
52 - 68 |
Halter Marine, Moss Point, USA: 52-68 | 1992-1993: 52-68 |
none |
none |
in service (2019): 52-68 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 56 |
| Length, m | 23.7 |
| Breadth, m | 6.06 |
| Draught, m | 1.01 hull 1.76 propellers |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 16V92TAB diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil 15 |
| Endurance, nm(kts) | 1200(12) |
| Armament | 2 x 1 - 25/87 Mk 38 Bushmaster, 2 x 1 - 7.6/90 |
| Electronic equipment | SPS-64(v)1 radar |
| Complement | 8 |
Graphics

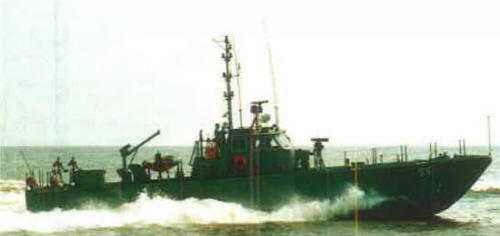

Halter type boat 1990
Project history
Halter 78ft type, ordered in 1990. Aluminium construction. Last delivered in January 1993.
Modernizations
None.
Naval service
No significant events.
