K-182 nuclear powered ballistic missile submarines (project 667BD) (1975)





Project 667BD 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
К-182 [K-182], 11.1977- К-182 60 лет Великого Октября [K-182 60 Let Velikogo Oktyabria], 6.1992- К-182 [K-182]   341 Northern Yd, Severodvinsk 10.4.1973 12.1.1975 30.9.1975 stricken 3.1995
К-92 [K-92]   342 Northern Yd, Severodvinsk 9.7.1973 3.5.1975 17.12.1975 stricken 3.1995
К-193 [K-193]   353 Northern Yd, Severodvinsk 3.9.1973 1.7.1975 30.12.1975 stricken 3.1995
К-421 [K-421]   354 Northern Yd, Severodvinsk 30.11.1973 1.7.1975 30.12.1975 stricken 3.1995


Technical data


Displacement standard, t



Displacement normal, t

10500 / 13600

Length, m

155.0

Breadth, m

11.9

Draught, m

8.60

No of shafts

2

Machinery

2 TZA-635 geared steam turbines units, 2 OK-700 nuclear reactors

Power, h. p.

40000

Max speed, kts

14 / 24

Fuel, t

nuclear

Endurance, nm(kts)

practically unlimited

Armament

16 R-29D SLBM (16 R-29D (4K75D)), 4 - 533 TT (bow, 16), 2 - 400 TT (bow, 4)

Electronic equipment

MRK-50 Kaskad radar, MGK-100 Kerch' sonar, MRP-10M Zaliv-P ECM suite, MG-44 Korund-1 decoys, Almaz-BD CCS

Complement

135

Diving depth operational, m

320



Standard scale images

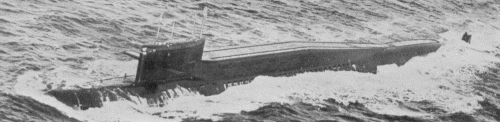

<i>K-92 </i>1990
K-92 1990


Graphics

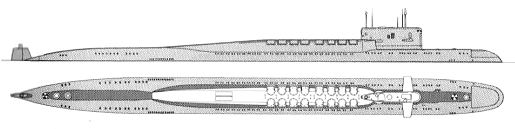

Project 667BD 1979
Project 667BD 1979


Project history

This was a lengthened ('D' in the project number) 'pr. 667B' carrying four more missiles; underwater speed fell to 24kts.

Modernizations

None.

Naval service

No significant events.
