ZYUYD survey vessel / minelayer (1937 / 1941)

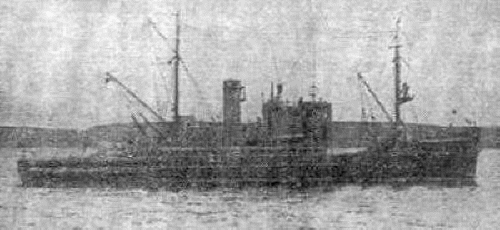

Zyuyd
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Зюйд [Zyuyd] | 86 | 196 Yd, Leningrad | 11.1935 | 24.10.1936 | 4.1937 // 8.1941 | survey vessel 11.1943 |
Technical data
| Displacement standard, t | 641 |
|---|---|
| Displacement full, t | 842 |
| Length, m | 56.8 |
| Breadth, m | 9.30 |
| Draught, m | 3.07 |
| No of shafts | 2 |
| Machinery | 2 6BK43 diesels |
| Power, h. p. | 600 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil 50 |
| Endurance, nm(kts) | 2020(9) |
| Armament | 2 x 1 - 76/28 8K, 6 x 1 - 45/43 21K, 2 x 1 - 20/70 Oerlikon Mk II/IV, 2 x 1 - 12.7/79, 50 mines |
| Complement | 105 |
Graphics
Zyuyd
Project history
Naval survey vessel, 23.8.1941 converted to minelayer.
Modernizations
None.
Naval service
12.11.1943 Zyuyd was disarmed and re-converted to survey vessel.
