VOLGA minelayer (1909)





Volga 1910

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Волга [Volga], 12.1922- 9 Января [9 Yanvarya]     New Admiralty, St. Petersburg 6.1903 10.9.1904 3.1909 TS 10.1922, depot ship 12.1938


Technical data


Displacement normal, t1711
Displacement full, t
Length, m

70.3

Breadth, m

11.9

Draught, m

4.35

No of shafts

2

Machinery

2 VTE, 4 Babcock & Wilcox boilers

Power, h. p.

1600

Max speed, kts

13.5

Fuel, t

coal 160

Endurance, nm(kts)1800(9)
Armament

4 x 1 - 47/40 Hotchkiss, 230 mines

Complement219


Graphics

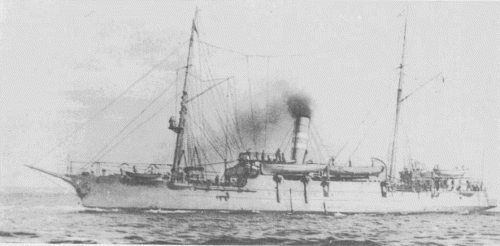

<i>Volga</i> 1910
Volga 1910


Project history

Built as mine transport, in a peace time it was supposed to use Volga as lighthouse tender and pilot ship. Ship possessed bad seaworthiness and a low stability.

Modernizations

None.

Naval service

Since 1938 she was used as depot hulk, in 1944 transferred to mercantile service. Wreck was preserved to this day in port of St. Petersburg.
