ALEKSANDR OBUKHOV coastal minesweepers (project 12700) (2016-)

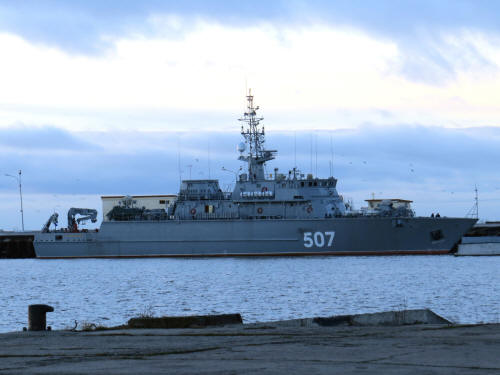

Aleksandr Obukhov 2016

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Александр Обухов [Aleksandr Obukhov] (ex-БТ-730 [BT-730]) 507 521 Sredne-Nevskiy SSZ, Pontonnyy 22.9.2011 27.6.2014 9.2.2016 in service (2019)
Георгий Курбатов [Georgiy Kurbatov]   522 Sredne-Nevskiy SSZ, Pontonnyy 24.4.2015 2020 2020 building (2019)
Иван Антонов [Ivan Antonov] 601 523 Sredne-Nevskiy SSZ, Pontonnyy 25.1.2017 25.4.2018 29.12.2018 in service (2019)
Владимир Емельянов [Vladimir Emelyanov]   524 Sredne-Nevskiy SSZ, Pontonnyy 20.4.2017 2019 2019 building (2019)
Яков Баляев [Yakov Baliayev]   525 Sredne-Nevskiy SSZ, Pontonnyy 26.12.2017 2019 2019 building (2019)
Пётр Ильичёв [Piotr Ilyichov]   526 Sredne-Nevskiy SSZ, Pontonnyy 25.7.2018 2020 2020 building (2019)
Анатолий Шлемов [Anatoliy Shlemov]   527 Sredne-Nevskiy SSZ, Pontonnyy 2019 2021 2021 building (2019)
    528 Sredne-Nevskiy SSZ, Pontonnyy 2019 2021 2022 building (2019)


Technical data


Displacement standard, t

620

Displacement full, t

800

Length, m

51.7

Breadth, m

10.2

Draught, m

2.70 hull 3.68 max

No of shafts

2 azipods

Machinery

2 M-503M1 diesels

Power, h. p.

5000

Max speed, kts

16.5

Fuel, t

diesel oil

Endurance, nm(kts)1680(10)
Armament

521: 2 x 1 Igla SAM (8 9M39), 1 x 6 - 30/54 AK-306, 1 x 1 - 12.7/79, mines, Aleksandrit-ISPUM, Diamand mine countermeasures systems, OUKT-B, PKT-B mechanical, Zhelatin multispectre, ShAT-U acoustic minesweeping gear

others: 2 x 1 Igla SAM (8 9M39), 1 x 6 - 30/54 AK-306, 1 x 1 - 14.5/89, mines, Aleksandrit-ISPUM, Diamand mine countermeasures systems, OUKT-B, PKT-B mechanical, Zhelatin multispectre, ShAT-U acoustic minesweeping gear

Electronic equipmentPal-N radar, MTK-201M3.1, SP-520M-2 E/O detectors, MG-757 Anapa sonar
Complement

44



Standard scale images


<i>Aleksandr Obukhov </i>2016
Aleksandr Obukhov 2016


Graphics


<i>Aleksandr Obukhov </i>2016
Aleksandr Obukhov 2016


Project history

New class of minesweepers, original design presumed French-designed and built mine countermeasures systems. Completion of the lead ship was delayed due to French refusing of delivery contract and the need to rebuild a ship for Russian equipment

Modernizations

None.

Naval service

No significant events.
