MDK-3 small landing ships (project 106K) (1965 - 1970)





Project 106K 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
МДК-... [MDK-...]   2 Nikolayevsk-on-Amur SY     1966 sewage barge 1980s-1990s
МДК-... [MDK-...]   4 Nikolayevsk-on-Amur SY     1968 cargo carrier 1980s-1990s
МДК-3 [MDK-3]     Kominterna SY, Kherson     1970 stricken 1980s-1990s
МДК-4 [MDK-4]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1968 stricken 1980s-1990s
МДК-5 [MDK-5]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1970 stricken 1980s-1990s
МДК-6 [MDK-6]     Kominterna SY, Kherson     1963 stricken 1980s-1990s
МДК-27 [MDK-27]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-73 [MDK-73]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-96 [MDK-96]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-99 [MDK-99]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-111 [MDK-111]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-127 [MDK-127]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     11.1970 stricken 1980s-1990s
МДК-152 [MDK-152]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-155 [MDK-155]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-159 [MDK-159]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-160 [MDK-160]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-163 [MDK-163]     Nikolayevsk-on-Amur SY     12.1967 stricken 3.1992
МДК-164 [MDK-164]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-166 [MDK-166]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-168 [MDK-168]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-170 [MDK-170]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-173 [MDK-173]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1968 stricken 6.1993
МДК-174 [MDK-174]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-175 [MDK-175]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1969 stricken 8.1995
МДК-176 [MDK-176]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 6.1993
МДК-177 [MDK-177]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-178 [MDK-178]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-181 [MDK-181]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-182 [MDK-182]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-190 [MDK-190]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-191 [MDK-191]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-192 [MDK-192]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-193 [MDK-193]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-200 [MDK-200]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s
МДК-499 [MDK-499]   7 Nikolayevsk-on-Amur     9.1968 stricken 8.2003
МДК-... [MDK-...]   8 Nikolayevsk-on-Amur     1970 stricken 1996
МДК-... [MDK-...]   195 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     3.1968 cargo carrier 1983
i           1965-70 stricken 1980s-1990s
ii           1965-70 stricken 1980s-1990s
iii           1965-70 stricken 1980s-1990s
iv           1965-70 stricken 1980s-1990s
v           1965-70 stricken 1980s-1990s
vi           1965-70 stricken 1980s-1990s
vii           1965-70 stricken 1980s-1990s
viii           1965-70 stricken 1980s-1990s
ix           1965-70 stricken 1980s-1990s


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate МДК-... [MDK-...]   2 Nikolayevsk-on-Amur SY     1966 sewage barge 1980s-1990s МДК-... [MDK-...]   4 Nikolayevsk-on-Amur SY     1968 cargo carrier 1980s-1990s МДК-3 [MDK-3]     Kominterna SY, Kherson     1970 stricken 1980s-1990s МДК-4 [MDK-4]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1968 stricken 1980s-1990s МДК-5 [MDK-5]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1970 stricken 1980s-1990s МДК-6 [MDK-6]     Kominterna SY, Kherson     1963 stricken 1980s-1990s МДК-27 [MDK-27]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-73 [MDK-73]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-96 [MDK-96]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-99 [MDK-99]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-111 [MDK-111]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-127 [MDK-127]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     11.1970 stricken 1980s-1990s МДК-152 [MDK-152]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-155 [MDK-155]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-159 [MDK-159]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-160 [MDK-160]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-163 [MDK-163]     Nikolayevsk-on-Amur SY     12.1967 stricken 3.1992 МДК-164 [MDK-164]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-166 [MDK-166]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-168 [MDK-168]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-170 [MDK-170]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-173 [MDK-173]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1968 stricken 6.1993 МДК-174 [MDK-174]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-175 [MDK-175]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1969 stricken 8.1995 МДК-176 [MDK-176]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 6.1993 МДК-177 [MDK-177]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-178 [MDK-178]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-181 [MDK-181]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-182 [MDK-182]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-190 [MDK-190]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-191 [MDK-191]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-192 [MDK-192]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-193 [MDK-193]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-200 [MDK-200]     Kominterna SY, Kherson or Tuapse SY or Nikolayevsk-on-Amur SY or 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965-70 stricken 1980s-1990s МДК-499 [MDK-499]   7 Nikolayevsk-on-Amur     9.1968 stricken 8.2003 МДК-... [MDK-...]   8 Nikolayevsk-on-Amur     1970 stricken 1996 МДК-... [MDK-...]   195 40-letiya godovshchiny Oktyabrya, Oktyabrskiy     3.1968 cargo carrier 1983 i           1965-70 stricken 1980s-1990s ii           1965-70 stricken 1980s-1990s iii           1965-70 stricken 1980s-1990s iv           1965-70 stricken 1980s-1990s v           1965-70 stricken 1980s-1990s vi           1965-70 stricken 1980s-1990s vii           1965-70 stricken 1980s-1990s viii           1965-70 stricken 1980s-1990s ix           1965-70 stricken 1980s-1990s

Technical data


Displacement standard, t

460

Displacement normal, t

610

Length, m

54.5

Breadth, m

7.95

Draught, m

2.04

No of shafts

2

Machinery

2 3D12 diesels

Power, h. p.

600

Max speed, kts

10.5

Fuel, t

diesel oil

Endurance, nm(kts)

1600(9)

Armament

none

Military load

3 heavy or medium tanks or 6 - 10 trucks or 176 troops

Electronic equipmentDon radar
Complement

13



Standard scale images

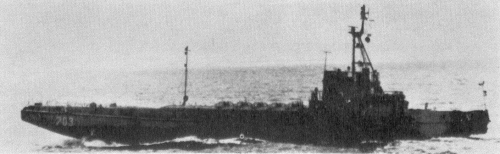

<i>MDK</i><i>-3 </i> 1970
MDK-3 1970
<i>MDK-127 </i>1979
MDK-127 1979


Graphics


Project 106K 1978
Project 106K 1978


Project history

Successor of Project 106K, can carry 200t of cargo. Had an open tank deck.

Modernizations

None.

Naval service

No significant events.
