MDK-167 small landing ships (air cushion) (projects 1232, 12321) (1970 - 1985)

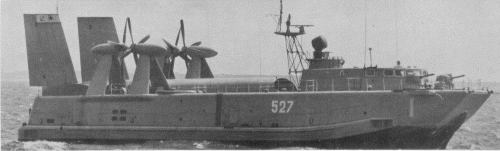

Project 12321 1977

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
МДК-167 [MDK-167]   71 Almaz, Leningrad 1967   12.1970 TS 1975, stricken 1992 Project 1232
МДК-86 [MDK-86]   72 Almaz, Leningrad     21.1.1975 stricken 1988 Project 12321
МДК-117 [MDK-117]   73 Almaz, Leningrad     15.7.1974 stricken 6.1991 Project 12321
МДК-103 [MDK-103]   74 Almaz, Leningrad     27.1.1976 stricken 3.1992 Project 12321
МДК-217 [MDK-217]   75 Almaz, Leningrad     30.9.1976 stricken 3.1992 Project 12321
МДК-219 [MDK-219]   76 Almaz, Leningrad     22.10.1977 stricken 3.1992 Project 12321
МДК-184 [MDK-184]   77 Almaz, Leningrad     30.7.1978 stricken 5.2004 Project 12321
МДК-162 [MDK-162]   78 Almaz, Leningrad     9.9.1979 stricken 7.1996 Project 12321
МДК-165 [MDK-165]   79 Almaz, Leningrad     27.5.1980 stricken 8.1995 Project 12321
МДК-9 [MDK-9]   80 Almaz, Leningrad     1980 stricken 12.1995 Project 12321
МДК-16 [MDK-16]   81 Almaz, Leningrad     1981 stricken 12.1995 Project 12321
МДК-88 [MDK-88]   82 Almaz, Leningrad     1981 stricken 3.2010 Project 12321
МДК-89 [MDK-89]   83 Almaz, Leningrad     30.7.1982 stricken 7.1996 Project 12321
МДК-77 [MDK-77]   84 Almaz, Leningrad     30.11.1982 stricken 12.1994 Project 12321
МДК-113 [MDK-113]   85 Almaz, Leningrad     29.8.1983 stricken 4.2002 Project 12321
МДК-114 [MDK-114]   86 Almaz, Leningrad     21.12.1983 stricken 3.1998 Project 12321
МДК-15 [MDK-15]   87 Almaz, Leningrad     30.8.1984 stricken 4.2002 Project 12321
МДК-18 [MDK-18]   88 Almaz, Leningrad     30.11.1984 stricken 3.2007 Project 12321
МДК-17 [MDK-17]   89 Almaz, Leningrad     30.10.1985 stricken 4.2002 Project 12321
МДК-44 [MDK-44]   90 Almaz, Leningrad     31.12.1985 stricken 12.1994 Project 12321


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Project 1232 МДК-167 [MDK-167]   71 Almaz, Leningrad 1967   12.1970 TS 1975, stricken 1992 Project 12321 МДК-86 [MDK-86]   72 Almaz, Leningrad     21.1.1975 stricken 1988 МДК-117 [MDK-117]   73 Almaz, Leningrad     15.7.1974 stricken 6.1991 МДК-103 [MDK-103]   74 Almaz, Leningrad     27.1.1976 stricken 3.1992 МДК-217 [MDK-217]   75 Almaz, Leningrad     30.9.1976 stricken 3.1992 МДК-219 [MDK-219]   76 Almaz, Leningrad     22.10.1977 stricken 3.1992 МДК-184 [MDK-184]   77 Almaz, Leningrad     30.7.1978 stricken 5.2004 МДК-162 [MDK-162]   78 Almaz, Leningrad     9.9.1979 stricken 7.1996 МДК-165 [MDK-165]   79 Almaz, Leningrad     27.5.1980 stricken 8.1995 МДК-9 [MDK-9]   80 Almaz, Leningrad     1980 stricken 12.1995 МДК-16 [MDK-16]   81 Almaz, Leningrad     1981 stricken 12.1995 МДК-88 [MDK-88]   82 Almaz, Leningrad     1981 stricken 3.2010 МДК-89 [MDK-89]   83 Almaz, Leningrad     30.7.1982 stricken 7.1996 МДК-77 [MDK-77]   84 Almaz, Leningrad     30.11.1982 stricken 12.1994 МДК-113 [MDK-113]   85 Almaz, Leningrad     29.8.1983 stricken 4.2002 МДК-114 [MDK-114]   86 Almaz, Leningrad     21.12.1983 stricken 3.1998 МДК-15 [MDK-15]   87 Almaz, Leningrad     30.8.1984 stricken 4.2002 МДК-18 [MDK-18]   88 Almaz, Leningrad     30.11.1984 stricken 3.2007 МДК-17 [MDK-17]   89 Almaz, Leningrad     30.10.1985 stricken 4.2002 МДК-44 [MDK-44]   90 Almaz, Leningrad     31.12.1985 stricken 12.1994

Technical data


Displacement standard, t

310

Displacement normal, t

pr. 1232: 350

pr. 12321: 360

Length, m

pr. 1232: 45.8

pr. 12321: 45.5

Breadth, m

17.4

Draught, m

1.60 / 0

No of shafts

4 air propellers

Machinery

2 NK-12 gas turbines (lift and propulsoion)

Power, h. p.

32000

Max speed, kts

pr. 1232: 50

pr. 12321: 49

Fuel, t

gas turbine oil

Endurance, nm(kts)

300(49)

Armament

pr. 1232: 1 x 2 - 30/71 AK-230

pr. 12321: 2 x 2 - 30/71 AK-230

Military load

2 main battle tanks or 4 light tanks or 5 APC or 80 troops or 73 t of cargo

Electronic equipment

pr. 1232: Donets-2 radar

pr. 12321: MR-104 Rys', Mius radars

Complement

21



Standard scale images


<i>MDK</i><i>-86 </i> 1975
MDK-86 1975


Graphics


Project 12321 1977
Project 12321 1977


Project history

Functional successors of Project 106K landing craft. Similar to British SR.N4, with bow and stern doors. Largest such craft in the world when completed.

Modernizations

None.

Naval service

No significant events.
