YASTREB guard ships (projects 11660, 11661K) (2003-2012)

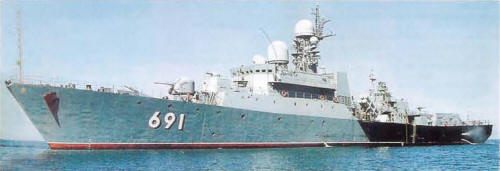

Tatarstan 2005

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
Ястреб [Yastreb]   901 Gorkiy SYd, Zelenodolsk 1990 --- --- cancelled 1993 Project 11660
Татарстан [Tatarstan] (ex-СКР-200 [SKR-200]) 691 951 Gorkiy SYd, Zelenodolsk 5/1990 7/1993 31.8.2003 in service (2019) Project 11161K
Дагестан [Dagestan] (ex-СКР-201 [SKR-201]) 693 952 Gorkiy SYd, Zelenodolsk 1994 1.4.2011 28.11.2012 in service (2019) Project 11161K


Technical data


Displacement standard, t

1500

Displacement full, t

951: 1930

952: 1805

Length, m

951: 102.2

952: 102.1

Breadth, m

951: 13.8

952: 13.2

Draught, m

951: 3.70

952: 3.50 hull 4.50 max

No of shafts

2

Machinery

CODAG M-44: 1 86B cruising diesel + 2 boost gas turbines

Power, h. p.

38000 (8000 + 30000)

Max speed, kts

28

Fuel, t

diesel oil / gas turbine oil

Endurance, nm(kts)

3800(14)

Armament

951: 2 x 4 Uran SSM (8 3M24), 1 x 2 Osa-MA2 SAM (20 9M33), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M, 20 mines

952: 1 x 8 Kalibr-NK CruM/SSM (VLS, 8 3M14/3M54), 1 x 1 - 76/59 AK-176M, 1 x 12 - 30/80 Palash, 2 x 1 - 14.5/89, 20 mines

Electronic equipment

951: 34K1 Monolit, MR-352 Pozitiv, MR-212 Vaygach, 4MPZ-301 Baza, MR-123 Vympel radars, Zarnitsa sonar, TK-25 ECM suite, 4x PK-10 Smelyy decoy launchers, Sigma CCS

952: Mineral-M, Pozitiv-M1, MR-212 Vaygach, MR-123 Vympel radars, Shar E/O director, Zarnitsa sonar, TK-25 ECM suite, 4x PK-10 Smelyy decoy launchers, Sigma CCS

Complement

121



Standard scale images


<i>Tatarstan </i>2015
Tatarstan 2015
<i>Dagestan </i>2015
Dagestan 2015


Graphics


<i>Tatarstan</i> 2005
Tatarstan 2005


Project history

Successor of light frigate of the project 1159. Dagestan was built under modified design with VLS for 8 Kalibr-Nk missiles but without planned Poliment SAM. Diesel and gas turbines can be clutched with shafts in different variants: all to two shafts, only diesel or only turbines or diesel on one shaft and gas turbine on another. Ships carry sonobuoy receiver/processor for working with ASW aircraft. Planned ASW armament (2 twin 533mm torpedo tubes and 1 RBU-6000 ASW rocket launcher) was not installed.

Modernizations

2016, Tatarstan: + MR-5PV Gals radar, MG-757 Anapa-M sonar

Naval service

No significant events.
