ALEKSANDR KUNAKHOVICH small ASW hydrofoil (project 1141) (1977)

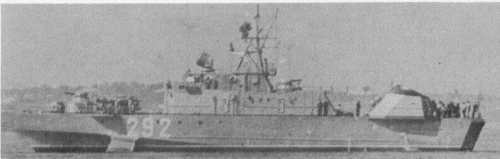

Aleksandr Kunakhovich 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Александр Кунахович [Aleksandr Kunakhovich]   801 Gorkiy SYd, Zelenodolsk 29.7.1974 26.10.1975 31.12.1977 test ship 6.1991, stricken 3.1994


Technical data


Displacement standard, t

349

Displacement normal, t

465

Length, m

50.2

Breadth, m

9.76 deck 20 foils

Draught, m

2.17 hull 6.90 foils

No of shafts

3 twin propellers / 2 water jets

Machinery

2 M10A gas turbines + 1 M10B gas turbine (on propellers) / 2 DRA-211 diesels (on water jets)

Power, h. p.

36000+18000=54000 / 2200

Max speed, kts

52

Fuel, t

diesel oil

Endurance, nm(kts)

2000(8)

Armament

2 x 6 - 30/54 AK-630M, 2 x 4 - 400 TT

Electronic equipment

MR-123-01 Vympel-A, MR-220 Reyd radar, Sheksna, MGS-407K sonars

Complement

36



Standard scale images


<i>Aleksandr Kunakhovich </i>1990
Aleksandr Kunakhovich 1990


Graphics


<i>Aleksandr Kunakhovich</i> 1978
Aleksandr Kunakhovich 1978


Project history

Aleksandr Kunakhovich was the largest Soviet hydrofoil, and like Project 1240 she had submerged foils. The two nests of TT (two above two) were located on either side, forward of the superstructure in Project 1141, well aft in Project 1145. At the time of commission main armament of Aleksandr Kunakhovich were 8 SET-72 torpedoes.

Modernizations

1990: - 2 x 4 - 400 TT; + 2 x 4 Medvedka ASuM (8 K77R)

Naval service

No significant events.
