VYBORG torpedo boat (1886)

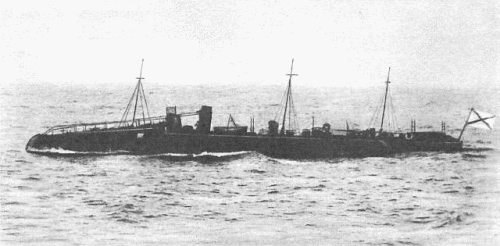

No102 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Выборг [Vyborg] (ex-№7), 4.1895- №102   233 Thompson, Glasgow, UK 10/1885 6.7.1886 10/1886 stricken 1.1910


Technical data


Displacement normal, t

125

Displacement full, t150
Length, m

43.4 pp 45.1 oa

Breadth, m

5.18

Draught, m

2.13 max

No of shafts

2

Machinery

2 VC, 2 locomotive boilers

Power, h. p.

1300

Max speed, kts

20

Fuel, t

coal 40

Endurance, nm(kts)1200(10)
Armament

2 x 5 - 37/17 Hotchkiss, 2 - 381 TT (bow, 4)

Complement24


Standard scale images


<i>Vyborg </i>1892
Vyborg 1892


Graphics


<i>No102</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
No102 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Rounded ram bow, turtle deck forward, three masts and two funnels abreast. Balanced rudder fitted. Two fixed bow TT.

Modernizations

1893: boilers were converted to oil fuel.

Naval service

No significant events.
