TOCHNYY torpedo boats / destroyers (1906 - 1908)





Tvyordyy

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Точный [Tochnyy], 9.1923- Потапенко [Potapenko]     Crichton, St. Petersburg // Vladivostok Admiralty 1904 // Summer 1905 10.12.1905 10.1906 captured by Japan 30.6.1918, re-captured 10.1922, stricken 4.1927
Тревожный [Trevozhnyy]     Crichton, St. Petersburg // Vladivostok Admiralty 1904 // 5.1905 5.1906 7.1907 captured by Japan 30.6.1918
Твёрдый [Tvyordyy], 9.1923- Лазо [Lazo]     Crichton, St. Petersburg // Vladivostok Admiralty 1904 // 1905 2.10.1906 7.1907 captured by Japan 30.6.1918, re-captured 10.1922, stricken 4.1927
Инженер-Механик Анастасов [Inzhener-Mekhanik Anastasov]     Crichton, St. Petersburg // Vladivostok Admiralty 1905 // 6.1907 19.8.1907 9.1908 captured by Japan 30.6.1918
Лейтенант Малеев [Leytenant Maleev]     Crichton, St. Petersburg // Vladivostok Admiralty 1905 // 6.1907 18.9.1907 9.1908 captured by Japan 30.6.1918


Technical data


Displacement normal, t

296 - 311

Displacement full, t370 - 385
Length, m

58.4

Breadth, m

5.59 - 5.64

Draught, m

2.19 - 2.29

No of shafts

2

Machinery

2 VTE, 4 Yarrow boilers

Power, h. p.

3800

Max speed, kts

26

Fuel, t

coal 65

Endurance, nm(kts)950 - 1100(12)
Armament

1 x 1 - 75/48 Canet, 3 x 1 - 47/40 Hotchkiss, 1 - 381 TT, 1 x 1 - 381 TT

Complement

60



Standard scale images

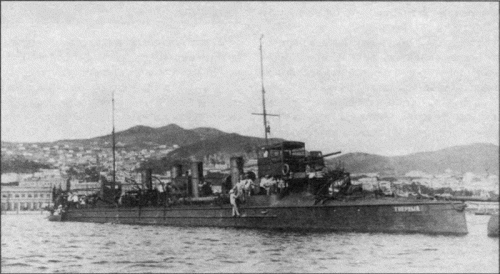

<i>Tvyordyy</i> 1913
Tvyordyy 1913


Graphics


<i>Tvyordyy</i>
Tvyordyy


Project history

Development of torpedo boats of Sokol class. Unlike prototype they had increased both bow and aft bridges and a mainmast for a radio station. Rates as torpedo boats.

Modernizations

1913, all: - 3 x 1 - 47/40, 1 - 381 TT, 1 x 1 - 381 TT; + 1 x 1 - 75/48 Canet, 2 x 1 - 7.6/94, 2 x 1 - 450 TT, 10 mines

Naval service

All ships were captured by Japanese troops 30.6.1918 at Vladivostok, all were re-captured in October, 1922 by Red Army but only two were re-commissioned by Red Navy.
