Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Прыткий [Prytkiy] (ex-Z14 Friedrich Ihn)		503	Blohm & Voss, Hamburg, Germany	5/1935	5.11.1935	4/1938 // 2.1946	stricken 3.1952
Пылкий [Pylkiy] (ex-Z15 Erich Steinbrinck)		504	Blohm & Voss, Hamburg, Germany	5/1935	24.9.1936	6/1938 // 1.1946	accommodation ship 4.1949

Technical data

Displacement standard, t	2239
Displacement full, t	3165
Length, m	Prytkiy: 116.3 wl 121.0 oa Pylkiy: 116.3 wl 121.3 oa
Breadth, m	11.3
Draught, m	4.23
No of shafts	2
Machinery	2 sets Germania geared steam turbines, 6 Benson boilers
Power, h. p.	67000
Max speed, kts	38
Fuel, t	oil 715
Endurance, nm(kts)	1825(19)
Armament	Prytkiy: 4 x 1 - 128/45 SK C/34, 7 x 2 - 37/69 FlaK M/42, 1 x 4 - 20/65 C/38, 3 x 2 - 20/65 C/38, 2 x 4 - 533 TT (16), 4 DCT (18), 60 mines Pylkiy: 5 x 1 - 128/45 SK C/34, 2 x 2 - 37/83 SK C/30, 1 x 4 - 20/65 C/38, 7 x 2 - 20/65 C/38, 2 x 4 - 533 TT (16), 4 DCT (18), 60 mines
Electronic equipment	FuMO 24, FuMO 63K radars, S-Gerät sonar, GHG hydrophone, FuMB 1, FuMB 3, FuMB 4 ECM suites
Complement	315

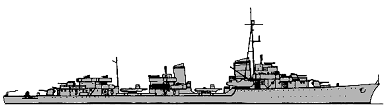

Standard scale images

Project history

Former-German destroyers of 1934A type transferred by reparations.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
