Provornyy Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Проворный [Provornyy] (ex-Z33)		1003	Deschimag, Bremen, Germany	12/1940	15.9.1941	2/1943 // 1.1946	target 3.1958

Technical data

Displacement standard, t	2657
Displacement full, t	3691
Length, m	121.9 wl 127.0 oa
Breadth, m	12.0
Draught, m	3.92
No of shafts	2
Machinery	2 sets Deschimag geared steam turbines, 6 Wagner boilers
Power, h. p.	70000
Max speed, kts	36
Fuel, t	oil 825
Endurance, nm(kts)	2950(19)
Armament	1 x 2 - 149/46 Tbts KC/36T, 3 x 1 - 149/46 Tbts KC/36, 6 x 2 - 37/69 FlaK M/42, 2 x 1 - 37/57 FlaK M/43, 1 x 4 - 20/65 C/38, 2 x 2 - 20/65 C/38, 2 x 1 - 20/65 C/38, 2 x 4 - 533 TT, 4 DCT (30), 60 mines
Electronic equipment	FuMO 24, FuMO 63K radars, S-Gerät sonar, GHG hydrophone, FuMB 3, FuMB 4 ECM suites
Complement	332

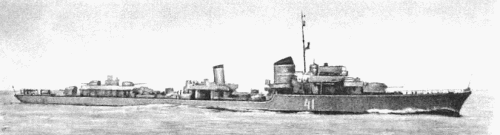

Graphics

Project history

Former German destroyer of 1936A(Mob) type transferred by reparations.

Modernizations

None.

Naval service

No significant events.
