NOVIK destroyer (1913)





Novik 1913

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Новик [Novik], 7.1926- Яков Свердлов [Yakov Sverdlov]     Putilov, St. Petersburg 8.1910 4.7.1911 9.1913 sunk 28.8.1941


Technical data


Displacement normal, t

1280

Displacement full, t1595
Length, m

102.4

Breadth, m

9.53

Draught, m

3.53

No of shafts

3

Machinery

3 AEG steam turbines, 6 Vulkan boilers

Power, h. p.

35100

Max speed, kts

36

Fuel, t

oil 418

Endurance, nm(kts)1800(16)
Armament

4 x 1 - 102/60, 4 x 1 - 7.6/94, 4 x 2 - 450 TT, 80 mines

Complement

113



Standard scale images

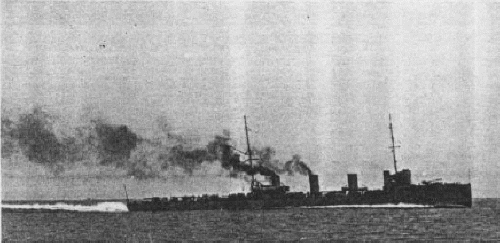

<i>Novik</i> 1914
Novik 1914


Graphics

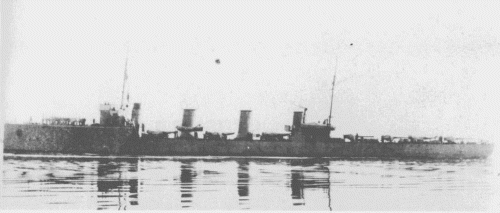

<i>Yakov Sverdlov</i>
Yakov Sverdlov

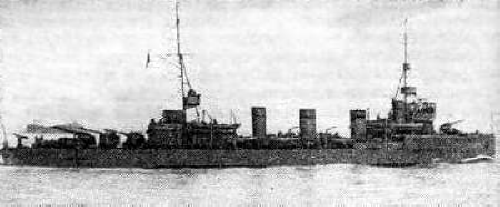

<i>Novik</i> 1913
Novik 1913
<i>Novik</i> 1913
Novik 1913


Project history

Large batch of turbine-driven destroyers of Imperial  Russian Navy. Built in many series with foreign technical help and possessed a number inter-subclass differences. Common for all ships were artillery (102mm/60 guns), powerful torpedo side salvo (from 8 to 12 450mm torpedoes in twin-and triple mounts) and, except for a lead ship, twin-shaft turbine machinery and a three-funnel outline profile.    Novik was built under the design of Putilov plant and was equipped with triple-shaft Curtis-AEG-Vulkan machinery and 6 Vulkan boilers. At the moment of commission she was one of the largest (1260t), well armed (4 102mm guns and 4 twin 450mm TTs) and fastest ships of this type in the world. On trials she shown average 36.3kts speed (maximum 37.3kts) at 41910hp.     In 1920s-1930s ship passed modernization and was converted to division leader.

Modernizations

1929: - 4 x 1 - 7.6/94, 4 x 2 - 450 TT; + 1 x 1 - 76/28 8K, 3 x 3 - 450 TT, 2 DCR (8), mine stowage decreased to 58

1940: + 4 x 1 - 12.7/79

Naval service

Yakov Sverdlov was lost 28.8.1941 on German mine en route from Tallin to Kronshtadt.
