NADYOZHNYY large ASW ships (project 61ME) (1979 - 1987)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Надёжный [Nadyozhnyy]   2201 61 Kommunar Yd, Nikolayev 11.9.1976 17.9.1977 30.11.1979 to India 5.1980 (राजपूत [Rajput])
Губительный [Gubitelnyy]   2202 61 Kommunar Yd, Nikolayev 29.11.1976 27.9.1978 30.9.1981 to India 6.1982 (राणा [Rana])
Ловкий [Lovkiy]   2203 61 Kommunar Yd, Nikolayev 29.6.1977 16.6.1979 20.7.1983 to India 11.1983 (रणजीत [Ranjit])
Твёрдый [Tviordyy]   2204 61 Kommunar Yd, Nikolayev 24.10.1981 12.3.1983 30.12.1985 to India 10.1986 (रणवीर [Ranvir])
Толковый [Tolkovyy]   2205 61 Kommunar Yd, Nikolayev 19.3.1982 1.2.1986 15.10.1987 to India 1.1988 (रणविजय [Ranvijay])


Technical data


Displacement standard, t

2201-2203: 4025

2204, 2205: 4185

Displacement full, t

2201-2203: 4905

2204, 2205: 5055

Length, m

146.2

Breadth, m

15.8

Draught, m

2201-2203: 4.85 hull 6.83 max

2204, 2205: 4.87 hull 6.85 max

No of shafts

2

Machinery

2 M-3EE gas turbine units

Power, h. p.

72000

Max speed, kts

33

Fuel, t

gas turbine oil

Endurance, nm(kts)

3500(18)

Armament

2201-2203: 4 x 1 Termit SSM (4 P-20), 2 x 2 M-1 Volna-M SAM (32 V-601(4K91)), 1 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 1 x 5 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-25)

2204, 2205: 4 x 1 Termit-M SSM (4 P-20M), 2 x 2 M-1 Volna-P SAM (32 V-601P), 1 x 2 - 76/59 AK-726, 4 x 6 - 30/54 AK-630, 1 x 5 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-28)

Electronic equipment

2201-2203: MR-500 Kliver, MR-310 Angara-A, 2x Yatagan, MR-105 Turel', 2x MR-104 Rys', 2x Volga radars, MGK-335 Platina sonar, Krab-11, Krab-12, MRP-11-14M, MRP-15-16M ECM suites, 4x PK-16 decoy RL, Planshet-61ME CCS

2204, 2205: MR-500 Kliver, MR-310 Angara-A, 2x Yatagan II, MR-105 Turel', 2x MR-123 Vympel, 2x Volga radars, MGK-335 Platina sonar, MP-401E Start ECM suite, 4x PK-16 decoy RL, Planshet-61ME CCS

Complement

2201-2203: 312

2204, 2205: 315

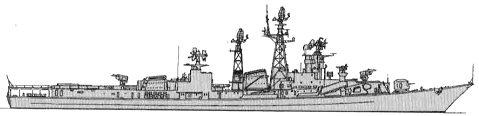

Standard scale images


<i>Nadyozhnyy </i>1979
Nadyozhnyy 1979


Project history

Export version of Project 61M, built for India and temporarily commissioned by Soviet Navy before transfer.

Modernizations

None.

Naval service

No significant events.
