DEYATELNYY destroyer (1920 / 1944)





Deyatelnyy Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Деятельный [Dyeyatelnyy] (ex-Churchill, ex-DD198 Herndon)   240 Newport News, USA 11/1918 31.5.1919 9/1920 // 7.1944 sunk 16.1.1945


Technical data


Displacement standard, t

1190

Displacement full, t

1590

Length, m

94.5 wl 95.8 oa

Breadth, m

9.40

Draught, m

3.00

No of shafts

2

Machinery

2 sets Westinghouse geared steam turbines, 4 White-Forster boilers

Power, h. p.

26000

Max speed, kts

35

Fuel, t

oil 375

Endurance, nm(kts)5000(14)
Armament

1 x 1 - 102/50 Mk 9, 1 x 1 - 76/50 Mk 20, 4 x 1- 20/70 Oerlikon Mk II/IV, 3 x 1 - 12.7/90, 1 x 3 - 533 TT, 1 x 24 - 178 Hedgehog ASWRL, 4 DCT, 2 DCR (60)

Electronic equipmenttype 271, type 286 or type 291 radars, type 141 sonar
Complement

146



Standard scale images

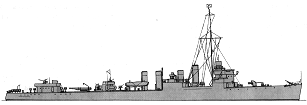

<i>Deyatelnyy</i> 1944
Deyatelnyy 1944

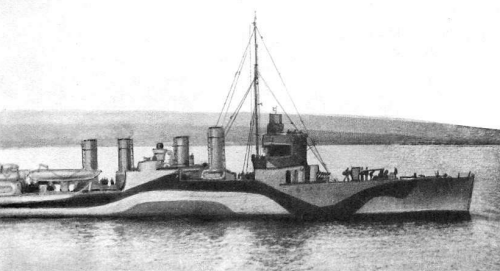

Graphics


<i>Deyatelnyy</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Deyatelnyy Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

USN "flushdeckers", transferred on lend-lease to the Great Britain. In 1944 8 ships were transferred to the USSR on account of reparations from Italy, and entered Northern Fleet; one more ship was transferred as a source of spare parts, but 26.8.1944 she was also commissioned as Druzhny.

Modernizations

None.

Naval service

Deyatelny 16.1.1945 was sunk by German submarine (presumably, U956) off Porchnikha Bay.
