"Ya-5" type motor mortar boats (Ya-1) (1942 - 1945)

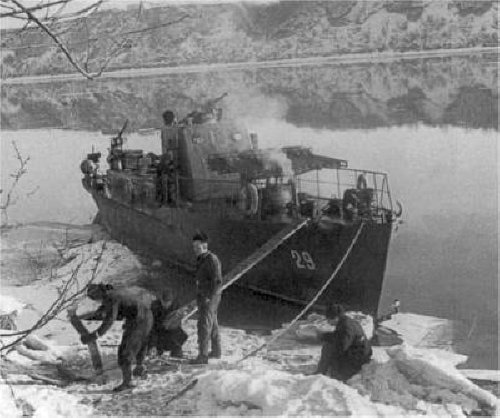

Ya-29

Ships


Names Builders Commissioned Losses Transfers Discarding

Ya-5:

Я-1 - 4 [Ya-1 - 4], 8.1944- КЭМТЩ-771 - 774 [KEMTShch-771 - 774]

Я-5 [Ya-5], 8.1944- MK-5

Я-6 - 9 [Ya-6 - 9], 8.1944- MK-6 - 9, 11.1944- KT-447 - 450

Я-10 - 13 [Ya-10 - 13], 8.1944- КЭМТЩ-775 - 778 [KEMTShch-775 - 778]

Ya-5M:

Я-25 [Ya-25], 1.1945- MK-25

Я-26 [Ya-26]

Я-27 [Ya-27]

Я-28 - 30 [Ya-28 - 30], 1.1945- MK-28 - 30

MK-38; MK-39

MK-41 - 48

345 Yd, Yaroslavl: Ya1-13, 25-30, MK-38, 39, 41-48

1942: Ya-1 - 10

1943: Ya11 - 13, 25 - 30

1945: MK-38, 39, 41 - 48

MK-5 (17.8.1944), Ya-26 (18.4.1944), Ya-27 (18.4.1944)

none

1946 - 1949: KEMTShch-771 - 774, KT-447 - 450, KEMTShch-775 - 778; MK-25, 28 - 30, 38, 39, 41 - 48


Technical data


Displacement standard, t
Displacement full, t

23

Length, m

18.7

Breadth, m

3.56

Draught, m

0.98

No of shafts

1

Machinery

Ya-5 type: 1 M-17 diesel

Ya-5M type: 1 Chrysler petrol engine

Power, h. p.

Ya-5 type: 65

Ya-5M type: 93

Max speed, kts

Ya-5 type: 9

Ya-5M type: 10

Fuel, t

Ya-5 type: diesel oil 4

Ya-5M type: petrol 4

Endurance, nm(kts)
Armament

2 x 1 - 12.7/79; 1 x 24 - 82 M-8 RL

Complement

10



Standard scale images


<i>Ya-1 </i>1942
Ya-1 1942


Graphics


<i>Ya-29</i>
Ya-29


Project history

Built as runabouts, sometimes are mentioned as Yaroslavets type. Steel-hulled, equipped with a tractor diesel or automobile motor (latter variant is known as Ya-5M type). There were minesweeper variants (KATShch) or mortar boat (MK).

Modernizations 8.

1944, KEMTShch-771 - 778: - 2 x 1 - 12.7/79, 1 x 24 - 82 RL; + 1 x 1 - 7.6/94, magnetic minesweeping gear

11/1944, KT-447 - 450: - 2 x 1 - 12.7/79, 1 x 24 - 82 rocket launcher; + 1 x 1 - 7.6/94, mecanical minesweeping gear

Naval service

Boats served as mortar boats (Ya, MK) or minesweeping boats (KT) or minesweeping boats with magnetic sweeps (KEMTShch).
