TK-75 attack craft (torpedo) hydrofoils (project 125) (1962), PSKR-150 border guard boats (project 125A) (1964 - 1967)

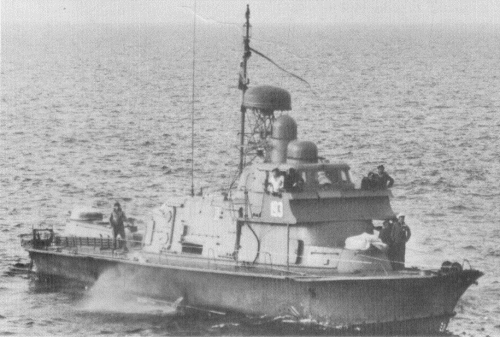

Project 125A 1976

Ships


Names Builders Commissioned Losses Transfers Discarding

pr. 125:

TK-75, 5.1966- T-75

TK-76, 5.1966- T-76

pr. 125A:

ПСКР-150-165 [PSKR-150-165]

Feodosiya SYd: TK-75, 76, PSKR-150-165

1962: TK-75, 76

1964: PSKR-150-153

1965: PSKR-154-157

1966: PSKR-158-161

1967: PSKR-162-165

none

none

1968: TK-75 (presumably), 76

1978: PSKR-151, 154

1981: PSKR-160, 161, 164

1980s: PSKR-150, 152, 153, 155-159, 162, 163, 165



Technical data


Displacement standard, t

pr. 125: 53

Displacement full, t

pr. 125: 61

pr. 125A: 65

Length, m

pr. 125: 25.0

pr. 125A: 26.1

Breadth, m

pr. 125: 4.90

pr. 125A: 5.30

Draught, m

pr. 125: 1.24 mean 2.70 max

pr. 125A: 2.60 max

No of shafts

4

Machinery

2 M-503G diesels, 2 D-20P gas turbines

Power, h. p.

28000 (2 x 4000 + 2 x 10000)

Max speed, kts

pr. 125: 73

pr. 125A: 62

Fuel, t

diesel oil

Endurance, nm(kts)

300(45)

Armament

pr. 125: 2 x 2 - 23/43 AN-23, 2 - 533 TT

pr. 125A: 2 x 2 - 23/43 AN-23, 2 DCR (4)

Electronic equipment

pr. 125: Ksenon-125 radar

pr. 125A: Ksenon-125 radar, dipping sonar

Complement

pr. 125: 12

pr. 125A: 17



Standard scale images


<i>PSKR-150 </i>1964
PSKR-150 1964
<i>PSKR-162 </i>1979
PSKR-162 1979


Graphics


Project 125A 1976
Project 125A 1976


Project history

This was a hydrofoil derivative of the failed Project 184 with a gas turbine whose TRD-20P afterburner added thrust directly. On trials, the boat showed that it could be used at up to 45kts in Sea State 1. Two prototype torpedo boats were built for the Soviet Navy, then sixteen for the KGB Maritime Border Guards (as Project 125A); they were, in effect, successors to Project 199.

Modernizations

None.

Naval service

No significant events.
