"MKL" type armoured motor gun boats (BK-521 KOMSOMOLETS ARMENII) (project 186) (1945 - 1947)





BK-558

Ships


Name No Yard No Builder Laid down Launched Comp Fate
БК-521 Комсомолец Армении [BK-521 Komsomolets Armenii], 11.1946- МКЛ-6 Комсомолец Армении [MKL-6 Komsomolets Armenii], 2.1949- БК-521 Комсомолец Армении [BK-521 Komsomolets Armenii]     194 Yd, Leningrad 8.1944 summer 1945 9.1945 stricken 8.1958
БК-522 [BK-522], 11.1946- МКЛ-10 [MKL-10], 2.1949- БК-522 [BK-522]     194 Yd, Leningrad 9.1944 summer 1945 9.1945 stricken 1.1960
БК-523 [BK-523], 11.1946- МКЛ-11 [MKL-11], 2.1949- БК-523 [BK-523]     194 Yd, Leningrad late 1944 summer 1945 9.1945 stricken 3.1959
БК-524 [BK-524], 11.1946- МКЛ-7 [MKL-7], 2.1949- БК-524 [BK-524]     194 Yd, Leningrad late 1944 summer 1945 9.1945 stricken 4.1956
БК-525 [BK-525], 11.1946- МКЛ-8 [MKL-8], 2.1949- БК-525 [BK-525]     194 Yd, Leningrad late 1944 summer 1945 9.1945 stricken 4.1956
БК-526 [BK-526], 11.1946- МКЛ-9 [MKL-9], 2.1949- БК-526 [BK-526]     194 Yd, Leningrad early 1945 autumn 1945 11.1945 stricken 4.1956
БК-527 [BK-527], 11.1946- МКЛ-12 [MKL-12], 2.1949- БК-527 [BK-527]     194 Yd, Leningrad early 1945 autumn 1945 11.1945 stricken 3.1958
БК-528 [BK-528], 11.1946- МКЛ-13 [MKL-13], 2.1949- БК-528 [BK-528]     194 Yd, Leningrad early 1945 autumn 1945 11.1945 stricken 3.1958
БК-529 [BK-529], 11.1946- МКЛ-14 [MKL-14], 2.1949- БК-529 [BK-529]     194 Yd, Leningrad 1945 1946 7.1946 stricken 1.1960
БК-530 [BK-530], 11.1946- МКЛ-15 [MKL-15], 2.1949- БК-530 [BK-530]     194 Yd, Leningrad 1945 1946 7.1946 stricken 1.1960
БК-531 [BK-531], 11.1946- МКЛ-30 [MKL-30], 2.1949- БК-531 [BK-531]     194 Yd, Leningrad 1945 1946 7.1946 stricken 1.1960
БК-532 [BK-532], 11.1946- МКЛ-16 [MKL-16], 2.1949- БК-532 [BK-532]     194 Yd, Leningrad 1945 1946 7.1946 stricken 3.1959
БК-533 [BK-533], 11.1946- МКЛ-17 [MKL-17], 2.1949- БК-533 [BK-533]     194 Yd, Leningrad 1945 1946 7.1946 stricken 3.1959
БК-534 [BK-534], 11.1946- МКЛ-18 [MKL-18], 2.1949- БК-534 [BK-534]     194 Yd, Leningrad 1945 1946 9.1946 stricken 3.1958
БК-535 [BK-535], 11.1946- МКЛ-19 [MKL-19], 2.1949- БК-535 [BK-535]     194 Yd, Leningrad 1945 1946 9.1946 stricken 11.1957
БК-536 [BK-536], 11.1946- МКЛ-21 [MKL-21], 2.1949- БК-536 [BK-536]     194 Yd, Leningrad 1946 1946 10.1946 stricken 5.1956
БК-537 [BK-537], 11.1946- МКЛ-20 [MKL-20], 2.1949- БК-537 [BK-537]     194 Yd, Leningrad 1945 1946 6.1946 stricken 3.1958
БК-538 [BK-538], 11.1946- МКЛ-22 [MKL-22], 2.1949- БК-538 [BK-538]     194 Yd, Leningrad 1946 1946 10.1946 stricken 11.1957
БК-539 [BK-539], 11.1946- МКЛ-23 [MKL-23], 2.1949- БК-539 [BK-539]     194 Yd, Leningrad 1946 1946 10.1946 stricken 5.1956
БК-540 [BK-540], 11.1946- МКЛ-24 [MKL-24], 2.1949- БК-540 [BK-540]     194 Yd, Leningrad 1946 1946 10.1946 stricken 10.1956
МКЛ-25 [MKL-25] (ex-БК-541 [BK-541]), 2.1949- БК-541 [BK-541]     194 Yd, Leningrad 1946 1947 1947 stricken 3.1958
МКЛ-26 [MKL-26] (ex-БК-542 [BK-542]), 2.1949- БК-542 [BK-542]     194 Yd, Leningrad 1946 1947 1947 stricken 11.1957
МКЛ-40 [MKL-40] (ex-БК-543 [BK-543]), 2.1949- БК-543 [BK-543]     194 Yd, Leningrad 1946 1947 1947 stricken 11.1957
МКЛ-41 [MKL-41] (ex-БК-544 [BK-544]), 2.1949- БК-544 [BK-544]     194 Yd, Leningrad 1946 1947 1947 stricken 11.1957
МКЛ-42 [MKL-42] (ex-БК-545 [BK-545]), 2.1949- БК-545 [BK-545]     194 Yd, Leningrad 1946 1947 1947 stricken 3.1960
МКЛ-43 [MKL-43] (ex-БК-546 [BK-546]), 2.1949- БК-546 [BK-546]     194 Yd, Leningrad 1946 1947 1947 stricken 3.1960
МКЛ-44 [MKL-44] (ex-БК-547 [BK-547]), 2.1949- БК-547 [BK-547]     194 Yd, Leningrad 1946 1947 1947 stricken 3.1960
МКЛ-61 [MKL-61], 2.1949- БК-548 [BK-548]     194 Yd, Leningrad 1947 1947 1947 stricken 3.1960
МКЛ-62 [MKL-62], 2.1949- БК-549 [BK-549]     194 Yd, Leningrad 1947 1947 1947 stricken 3.1960
МКЛ-63 [MKL-63], 2.1949- БК-550 [BK-550]     194 Yd, Leningrad 1947 1947 1947 stricken 3.1960
МКЛ-64 [MKL-64], 2.1949- БК-551 [BK-551]     194 Yd, Leningrad 1947 1947 1947 stricken 10.1949
МКЛ-65 [MKL-65], 2.1949- БК-552 [BK-552]     194 Yd, Leningrad 1947 1947 1947 stricken 10.1949
МКЛ-66 [MKL-66], 2.1949- БК-553 [BK-553]     194 Yd, Leningrad 1947 1947 1947 stricken 10.1949
МКЛ-67 [MKL-67], 2.1949- БК-554 [BK-554]     194 Yd, Leningrad 1947 1947 1947 stricken 1.1959
МКЛ-68 [MKL-68], 2.1949- БК-555 [BK-555]     194 Yd, Leningrad 1947 1947 1947 stricken 6.1958
МКЛ-69 [MKL-69], 2.1949- БК-556 [BK-556]     194 Yd, Leningrad 1947 1947 1947 stricken 3.1958
МКЛ-70 [MKL-70], 2.1949- БК-557 [BK-557]     194 Yd, Leningrad 1947 1947 1947 stricken 6.1958
МКЛ-71 [MKL-71], 2.1949- БК-558 [BK-558]     194 Yd, Leningrad 1947 1947 1947 stricken 3.1959


Technical data


Displacement standard, t156
Displacement full, t

166

Length, m

36.2

Breadth, m

5.20

Draught, m

1.50

No of shafts

2

Machinery

2 General Motors diesels

Power, h. p.

1000

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)600(10)
Armour, mmbelt: 20 - 8, deck: 20 - 9, turrets: up to 90, CT: 20
Armament

2 x 1 - 85/55 ZIS-S-53, 1 x 1 - 37/73 70K, 2 x 2 - 12.7/79, 2 x 1 - 82/12 mortars

Complement

42



Standard scale images

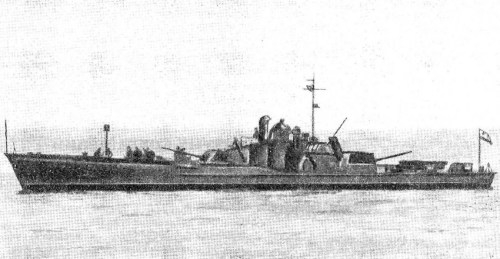

<i>MKL-71 </i>1947
MKL-71 1947


Graphics


<i>BK-558</i>
BK-558


Project history

"Small gunboats", later development of project 161. Differed from predecessor by new main engines (diesels) and fitting of turrets with 85mm guns from new tank T-34-85.

Ship protection

Belt had 20mm thickness abreast citadel and 8mm at ship ends; protective deck was 20mm over citadel and 9mm at ship ends.

Modernizations

None.

Naval service

No significant events.
