No16 motor launches (project KM-4) (1938 - 1943), K-186 border guard boats (type KM-IV) (1938 - 1949)

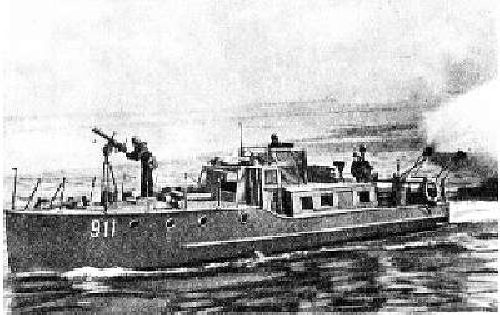

DZ-911

Ships


Names Builders Commissioned Losses Transfers Discarding

Navy boats:

№16 [No16], 12.1944- СК-16 [SK-16]

№26 [No26], 12.1944- СК-26 [SK-26]

№31 [No31], 11.1944- KT-609

№32 [No32], 12.1944- СК-32 [SK-32]

№58 [No58], 1.1945- СК-58 [SK-58]

№68 [No68], 1.1945- СК-68 [SK-68], 6.1945- KT-406

№78 [No78], 1.1945- СК-78 [SK-78], 6.1945- KT-407

№88 [No88], 1.1945- СК-88 [SK-88], 6.1945- KT-408

№93 [No93], 10.1944- KT-93

№94 [No94], 12.1944- СК-94 [SK-94]

№95 [No95], 10.1944- KT-95

№98 [No98], 10.1944- KT-98

№98 [No98], 1.1945- СК-98 [SK-98], 6.1945- KT-409

№99 [No99], 10.1944- KT-99

№102 [No102], 11.1944- KT-102

№107 [No107], 10.1944- KT-119

№108 [No108], 1.1945- СК-108 [SK-108], 6.1945- KT-410

№110 [No110], 11.1944- KT-110

№112 [No112], 10.1944- KT-112

ОВ-211 - 214 [OV-211 - 214], 9.1944- СК-211 - 214 [SK-211 - 214]

ОВ-311 - 316 [OV-311 - 316], 9.1944- СК-311 - 316 [SK-311 - 316]

Border Guard boats, transferred to Navy:

K-186, 12.1941- №0208 [No0208], 5.1944- СК-208 [SK-208]

K-187, 12.1941- №0218 [No0218]

K-191, 12.1941- №0198 [No0198], 5.1944- СК-198 [SK-198]

K-211, 12.1941- №0107 [No0107], 5.1944- СК-107 [SK-107]

K-227, 12.1941- №0184 [No0184], 12.1941- №097 [No097], 5.1944- СК-97 [SK-97]

K-235, 12.1941- №0164 [No0164]

K-319, 9.1941- И-31 [I-31], 10.1944- KT-847

K-320, 9.1941- И-43 [I-43], 11.1944- KT-43

K-321, 9.1941- И-44 [I-44], 11.1944- KT-44

K-322, 9.1941- И-45 [I-45], 10.1944- KT-848

K-323, 9.1941- И-46 [I-46]

K-324, 9.1941- И-47 [I-47], 10.1944- KT-849

K-388, 9.1941- №607 [No607], 5.1944- СК-607 [SK-607]

K-389, 9.1941- №608 [No608], 5.1944- СК-608 [SK-608]

Border Guard boats:

K-213, 214

many small yards

1938: K-388, 389

1939: K-186, 187, 191, 211, 227, 235

1940: K-319 - 324

1941: No16, 31, 32, 94, 95, 102, 107, 110, 112

1942: OV-211 - 214, No26, 58, 68, 78, 88, 93, 98(i), 98(ii), 99, 108

1943: OV-311 - 316

1949: K-213, 214

No0218 (1942), No0164 (2/1943)

none

1944: I-46

late 1940s: all survived



Technical data


Displacement standard, t
Displacement full, t

12

Length, m

19.3

Breadth, m

3.40

Draught, m

0.80

No of shafts

2

Machinery

2 petrol engines

Power, h. p.

126

Max speed, kts

10

Fuel, t

petrol

Endurance, nm(kts)220(8)
Armament

1 x 1 - 7.6/94

Complement10


Standard scale images


<i>SK-16</i> 1945
SK-16 1945


Graphics


<i>DZ-911</i>
DZ-911


Project history

Further development of KM-2 with twin-shaft machinery. In days of war they were used as minesweeping, patrol and smoke curtain launches.

Modernizations

1941, I-31, 47; 1942, I-43 - 45, No31, 93, 95, 98, 99, 102, 107, 110, 112; 1945, KT-406 - 410: + mechanical minesweeping gear

Naval service

No significant events.
